USG22554PC

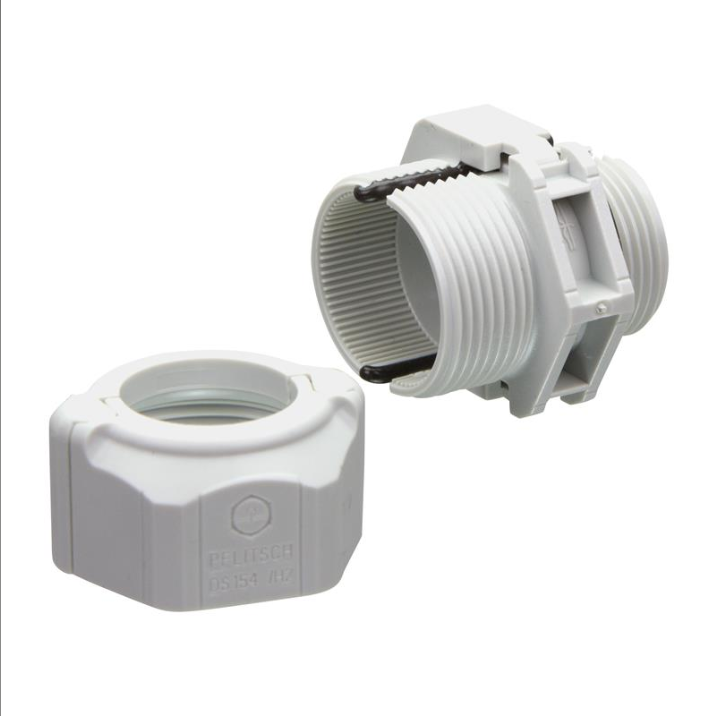

USG22554PC PFLITSCH’s fully splittable UNI Split Gland plastic and metal cable gland – the solution for pre-assembled cable installations. The cable gland body and the pressure screw consist of two halves, and the sealing inserts are side-slitted to allow pre-assembled cables to be placed in them. What makes the UNI Split Gland unique is its splittability, allowing the whole diameter to be used for feeding through pre-fitted plugs. The UNI Split Gland follows the UNI Dicht principle, ensuring that the cable is dependably sealed without being irreparably cut into or severely indented. The TPE-V sealing inserts from the UNI Dicht range, from the solid to the multiple-cable sealing insert, can be used with the split cable gland, providing a large sealing range. Thanks to the soft-squashing action of the sealing insert over a large area of the cable sheath and the seal in the plane of the split, as well as a further seal at the connection thread, the gland achieves IP 67 protection (in accordance with EN 60529) and Type 4X. The UNI Split Gland made from polycarbonate or zinc die-casting also excels with strain relief in accordance with EN 62444 and an operating temperature range of -20 °C to +80 °C. The cable gland is easily split, allowing not only pre-assembled cable installations but also providing the flexibility to add further cables later without the need for dismantling or interrupting production. Choose PFLITSCH’s UNI Split Gland for reliable, easy, and efficient cable installations.
