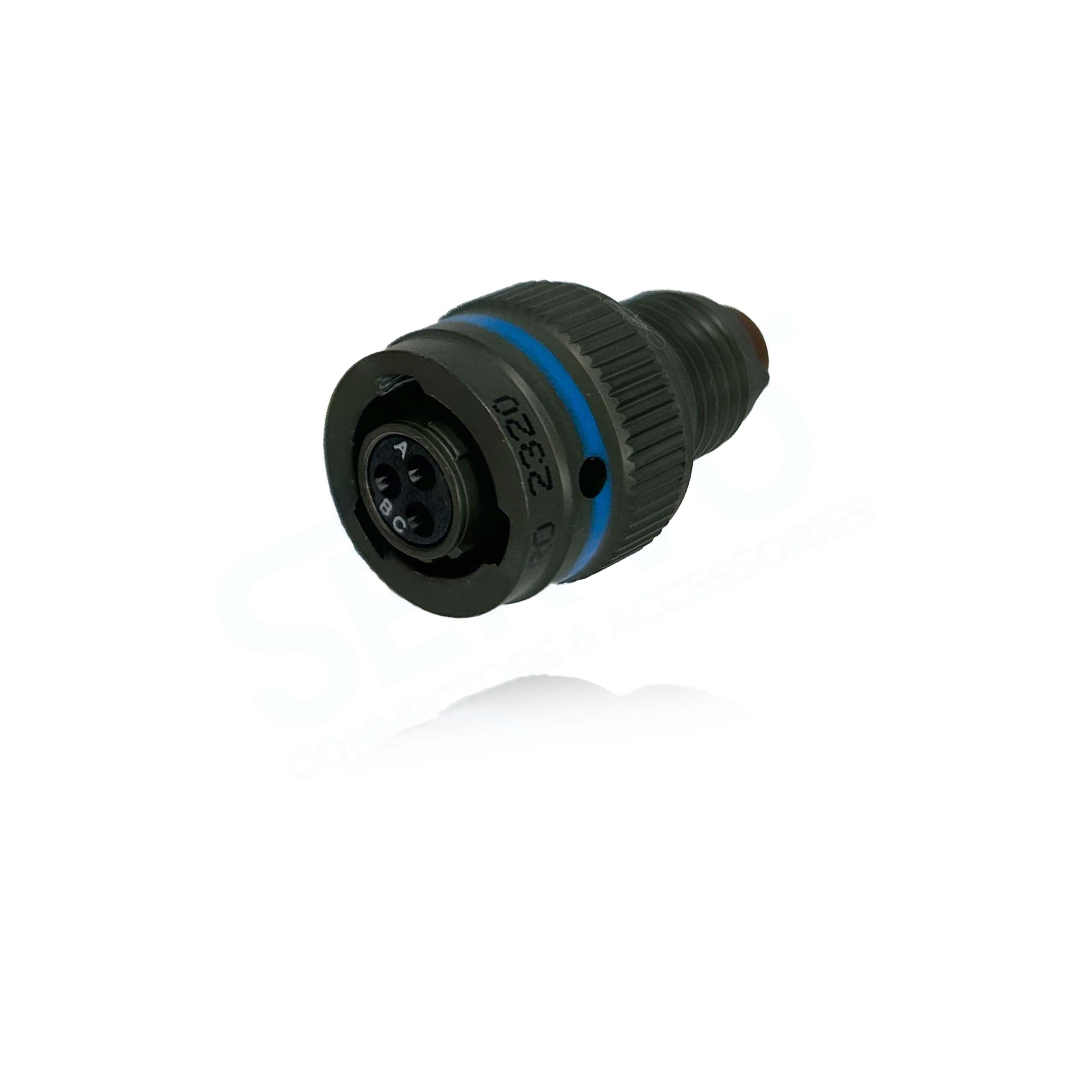

MS3476W8-33S
MS3476W8-33S, Standard Plug, Shell Size 8 with 3#20 Socket Contacts, Olive Drab Chromate over Cadmium over Nickel 500 Hour Salt Spray Plating.
| Manufacturer: | Fujikura |
|---|---|
| RoHS: |  |
| Datasheet: | MS3476W8-33S Datasheet |
| Additional: |  |
RoHS Compliant: No
Technical Specifications
| Connector Style | Plug |
|---|---|
| Contact Gender | Socket – Female |
| Contact Size | 3#20 |
| Coupling Style | Bayonet |
| Insert Arrangement | 08 – 33 |
| No of Contacts | 3 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Cadmium Olive Drab |
| Shell Size | 8 |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -55°C to +200°C – -65°F to +392°F |
|---|---|
| RoHS Compliant | No |
Quality & Compliance
| Qualified | Yes – Military Spec QPL |
|---|---|
| Specification | MIL-DTL-26482 |
| Series | MIL-DTL-26482 |
