DX02H-14B-12-PN

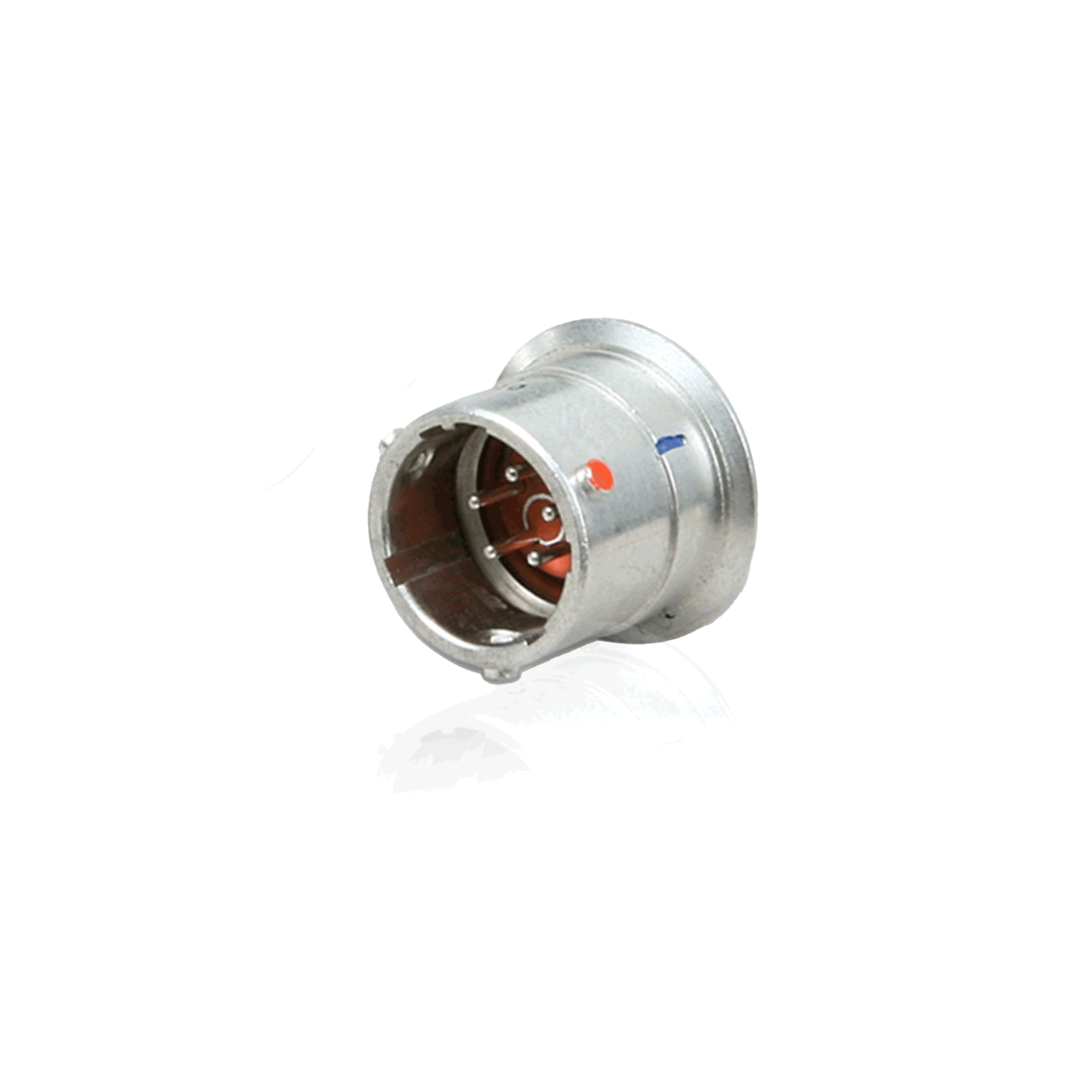

DX02H-14B-12-PN Square Flange Bayonet, Hermetic MIL-DTL-24264B Type, Shell Size 14 with 3#16, 9#20Pin Contacts, Normal Orientation.
| Manufacturer | |
|---|---|
| Angle | Straight |
| Contact Gender | Pin – Male |
| Insert Arrangement | 14-12 |
| Shell Material | |
| RoHS Compliant | Yes |
| Connector Style | Solder Mount |
| Contact Size | 3#16, 9#20 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Normal |
| Operating Temperature | -55?C +260?C – -67?F +500?F |
| Qualified | No |
| Series | DX Series |
| Shell Size | |
| Insulation Resistance | 000 megohms AT 500VDC, 5 |
| Specification | MIL-STD-26500 Type |
