DMS3106B36-4S

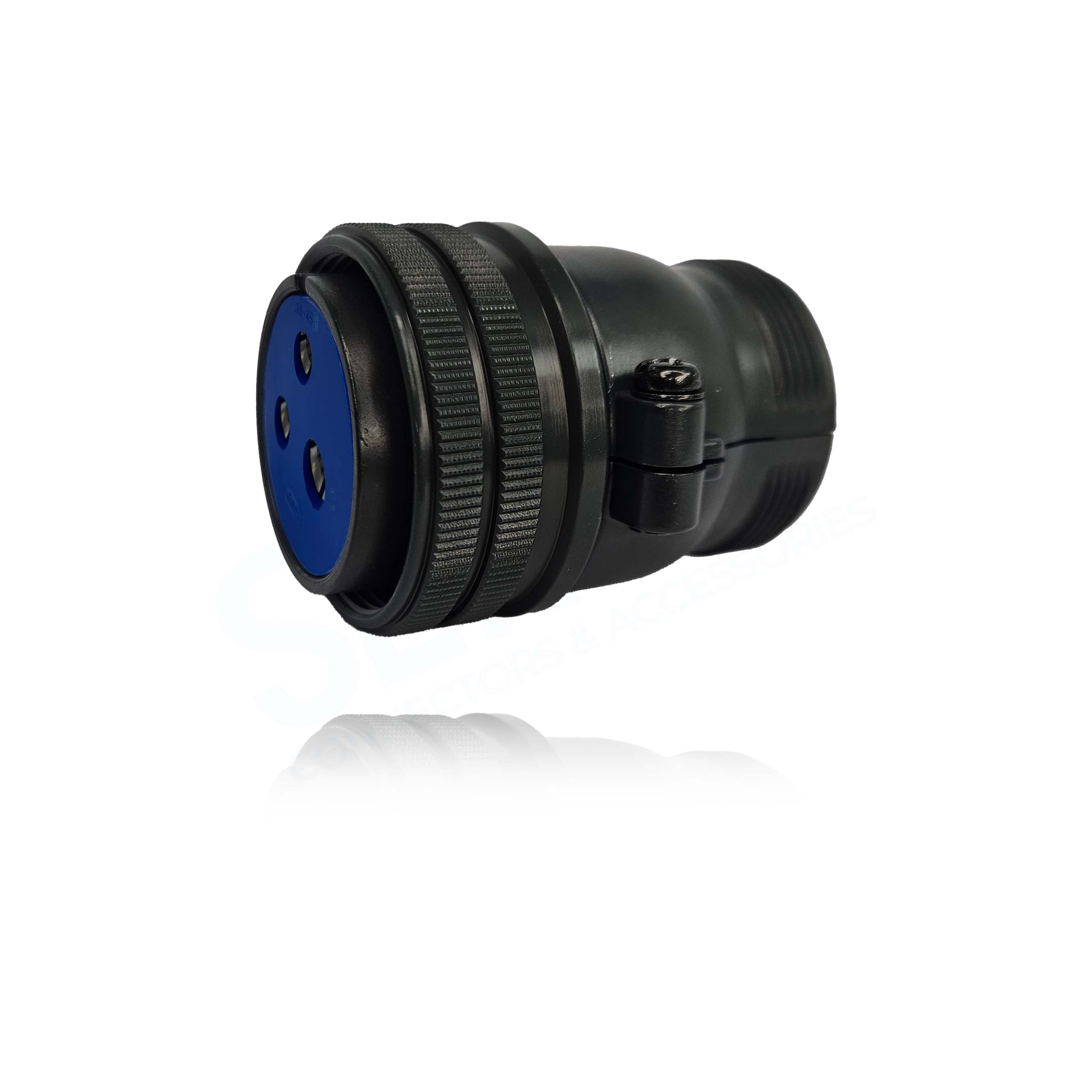

D/MS3106B36-4S Straight Plug with Split Backshell, Black Trivalent Chromate, Shell Size 36 with 2#0 Socket Contacts.
| RoHS: Yes Delivery: 24 Hour Build |
| Manufacturer | |
|---|---|
| Angle | Straight |
| Colour | Black |
| Connector Style | Straight Plug Split Backshell |
| Contact Gender | Socket – Female |
| Contact Plating | Silver (Standard) |
| Contact Size | 2#0 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Normal |
| Insert Arrangement | 36-4 |
| No of Contacts | 2 |
| Insulation Resistance | 5000M? min. at 500V DC |
| Qualified | MIL-DTL-5015 |
| RoHS Compliant | Yes |
| Series | D/MS A/B |
| Shell Material | |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | |
| Specification | |
| Termination Method | Solder |
| Operating Temperature | – 55°C – + 125°C – -67°F – +257°F |
