DMS3106A36-9P

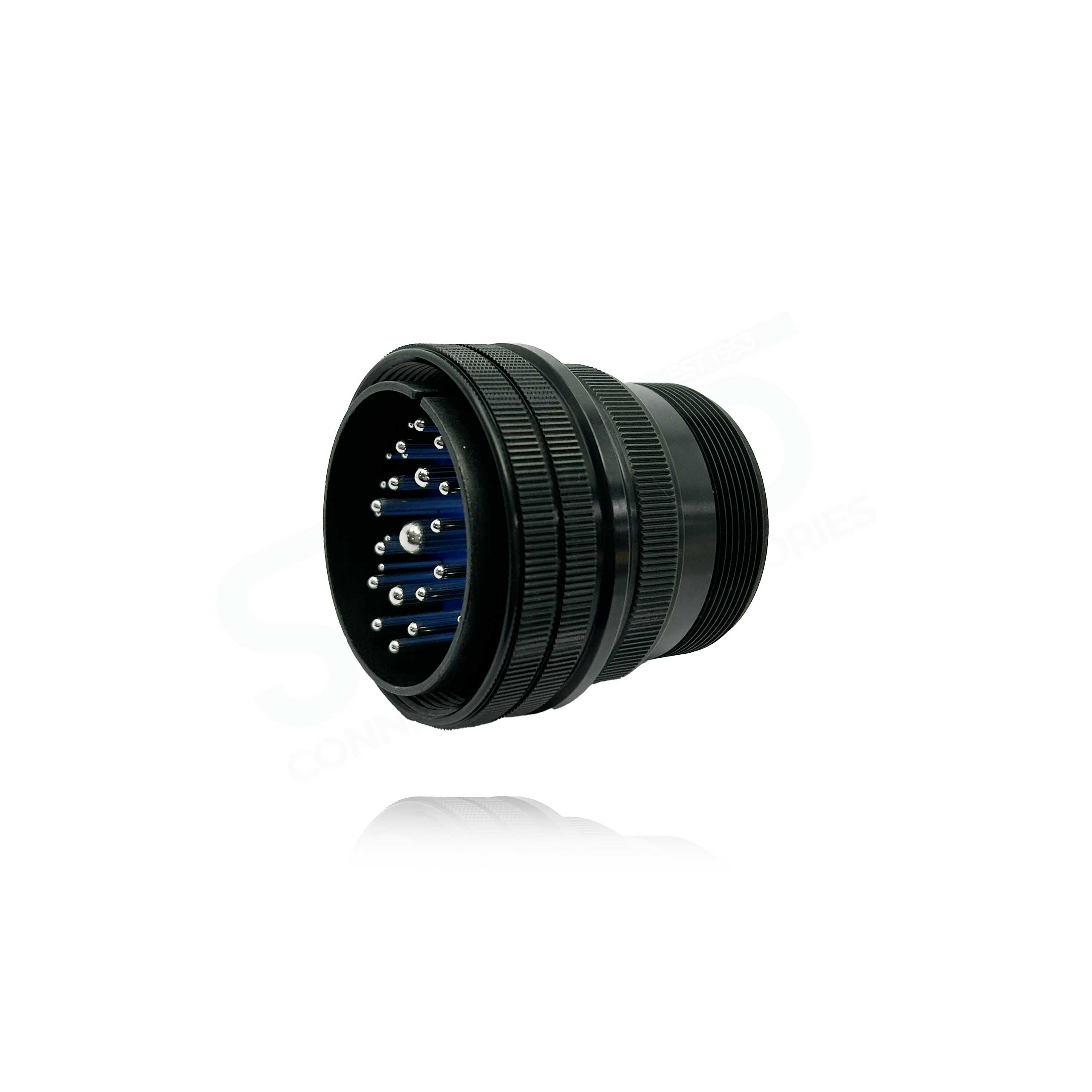

D/MS3106A36-9P Straight Plug, Black Trivalent Chromate, Shell Size 36 with 1#4, 2#8, 14#12, 14#16 Pin Contacts.
| RoHS: Yes Delivery: 24 Hour Build |
| Manufacturer | |
|---|---|
| Angle | Straight |
| Colour | Black |
| Connector Style | Straight Plug |
| Contact Gender | Pin – Male |
| Contact Plating | Silver (Standard) |
| Contact Size | 1#4, 14#12, 14#16, 2#8 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Normal |
| Insert Arrangement | 36-9 |
| No of Contacts | 31 |
| Insulation Resistance | 5000M? min. at 500V DC |
| Qualified | MIL-DTL-5015 |
| RoHS Compliant | Yes |
| Series | D/MS A/B |
| Shell Material | |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | |
| Specification | MIL-DTL-5670 |
| Termination Method | Solder |
| Operating Temperature | – 55?C – + 125?C – -67?F – +257?F |
