Manufacturer | |
---|---|
Angle | Straight |
Colour | Black |
Connector Style | Straight Plug |
Contact Gender | Socket – Female |
Contact Plating | Silver (Standard) |
Contact Size | 18#16, 4#12 |
Contacts Supplied | Yes |
Coupling Style | Threaded |
Insert Keyway | Normal |
Insert Arrangement | 45624 |
No of Contacts | 22 |
Insulation Resistance | 5000M? min. at 500V DC |
Qualified | -55?C to +125?C – -67?F to +257?F |
RoHS Compliant | Yes |
Series | D/MS A/B |
Shell Material | |
Shell Plating | Trivalent Chromium Treatment (Black) |
Shell Size | |
Specification | MIL-DTL-5015 |
Termination Method | Solder |
DMS3106A28-11S

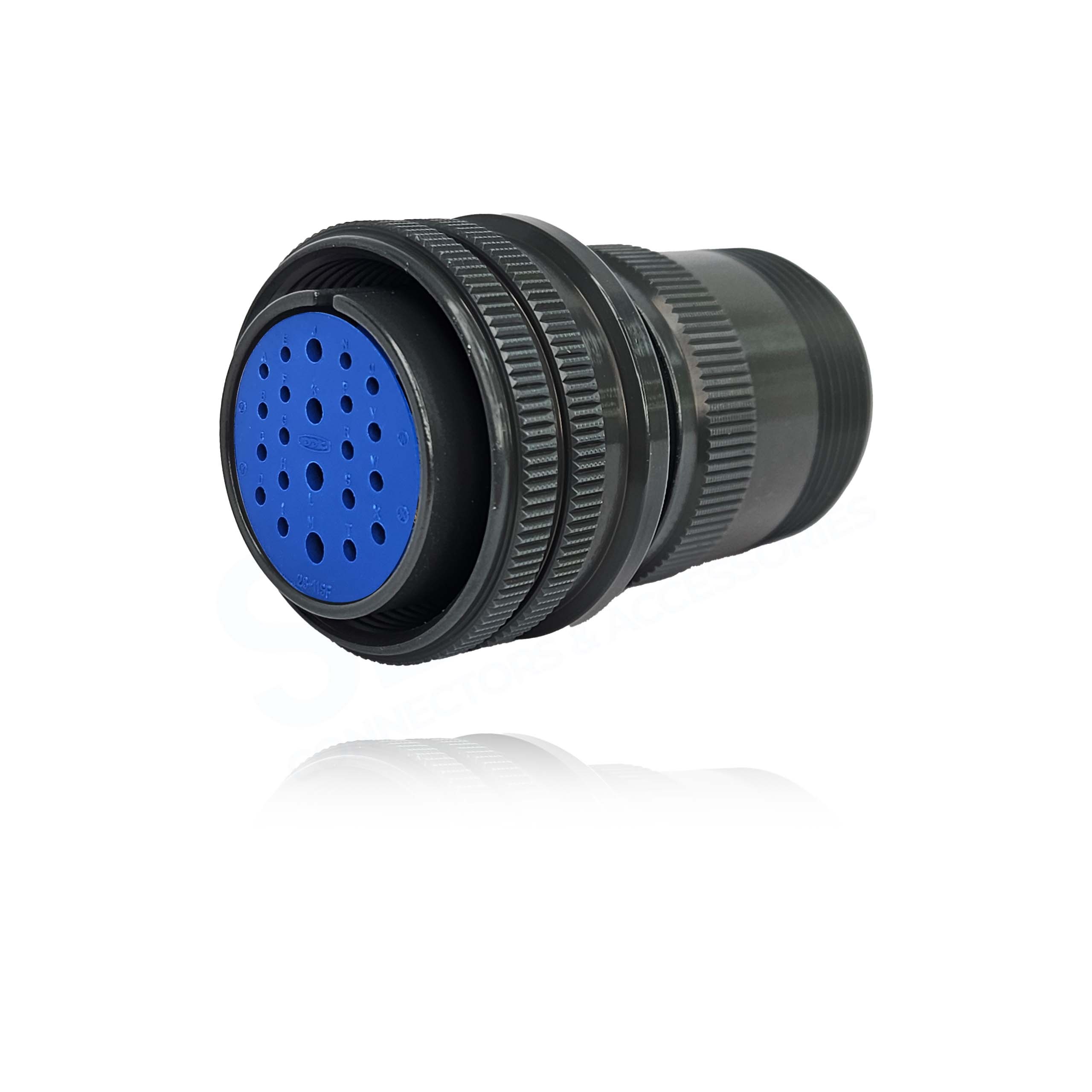

D/MS3106A28-11S Straight Plug, Black Trivalent Chromate, Shell Size 28 with 4#12, 18#16 Socket Contacts
Manufacturer: | Fujikura |
---|---|
RoHS: | |
Datasheet: | D/MS3106A28-11S Datasheet |
Additional: |
