Manufacturer | |
---|---|
Angle | Straight |
Colour | Black |
Connector Style | Straight Plug |
Contact Gender | Socket – Female |
Contact Plating | Silver (Standard) |
Contact Size | 10#16 |
Contacts Supplied | Yes |
Coupling Style | Threaded |
Insert Keyway | X |
Insert Arrangement | 45583 |
No of Contacts | 10 |
Insulation Resistance | 5000M? min. at 500V DC |
Qualified | -55?C to +125?C – -67?F to +257?F |
RoHS Compliant | Yes |
Series | D/MS A/B |
Shell Material | |
Shell Plating | Trivalent Chromium Treatment (Black) |
Shell Size | |
Specification | MIL-DTL-5015 |
Termination Method | Solder |
DMS3106A18-1SX

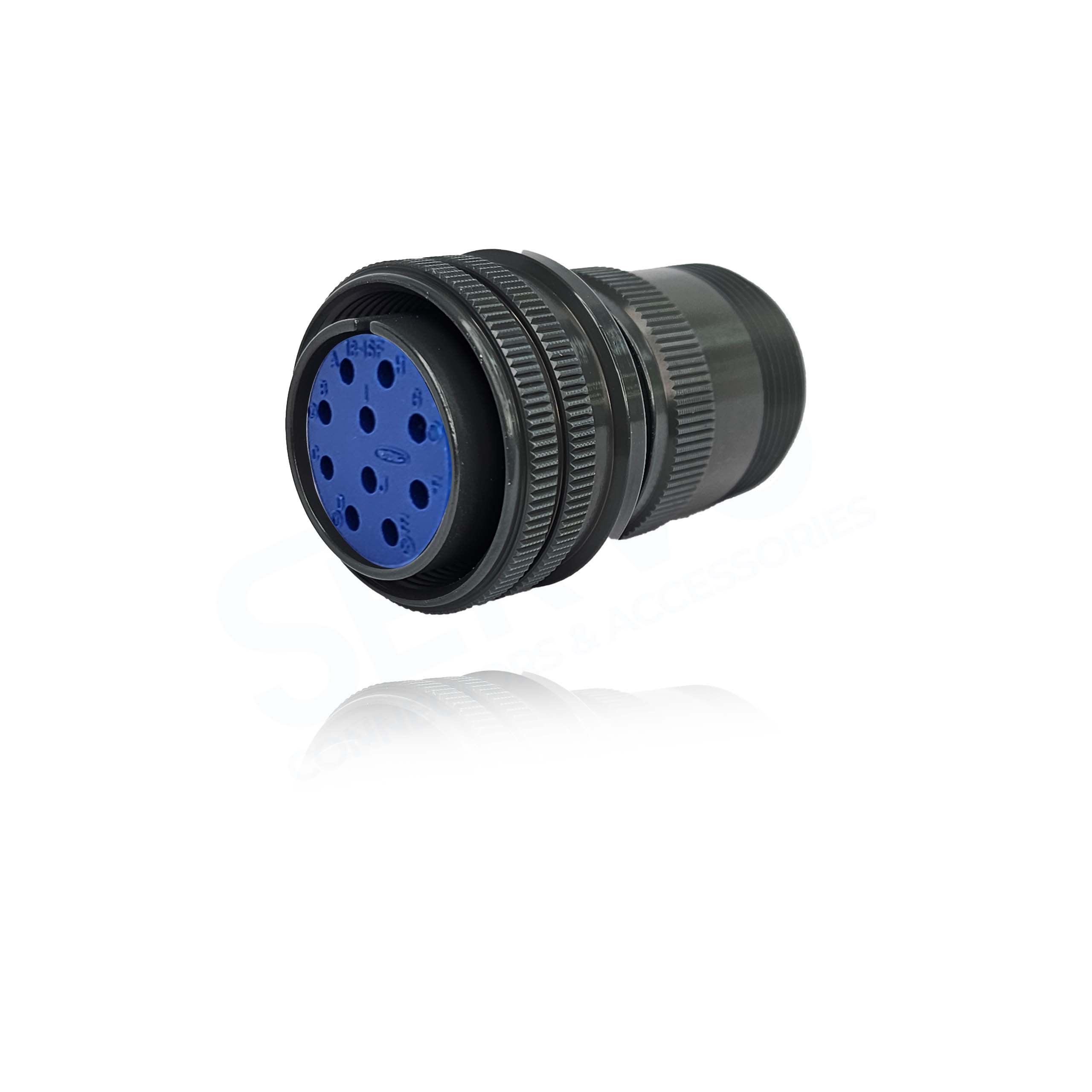

D/MS3106A18-1SX Straight Plug, Black Trivalent Chromate, Shell Size 18 with 10#16 Socket Contacts, X Orientation.
Manufacturer: | Fujikura |
---|---|
RoHS: | |
Datasheet: | D/MS3106A18-1SX Datasheet |
Additional: |
