Manufacturer | |
---|---|
Angle | Straight |
Colour | Black |
Connector Style | Straight Plug |
Contact Gender | Pin – Male |
Contact Plating | Silver (Standard) |
Contact Size | 6#16 |
Contacts Supplied | Yes |
Coupling Style | Threaded |
Insert Keyway | Normal |
Insert Arrangement | 45644 |
No of Contacts | 6 |
Insulation Resistance | 5000M? min. at 500V DC |
Qualified | MIL-DTL-5015 |
RoHS Compliant | Yes |
Series | D/MS A/B |
Shell Material | |
Shell Plating | Trivalent Chromium Treatment (Black) |
Shell Size | |
Specification | MIL-DTL-5015 |
Termination Method | Solder |
Operating Temperature | – 55?C – + 125?C – -67?F – +257?F |
DMS3106A18-12P

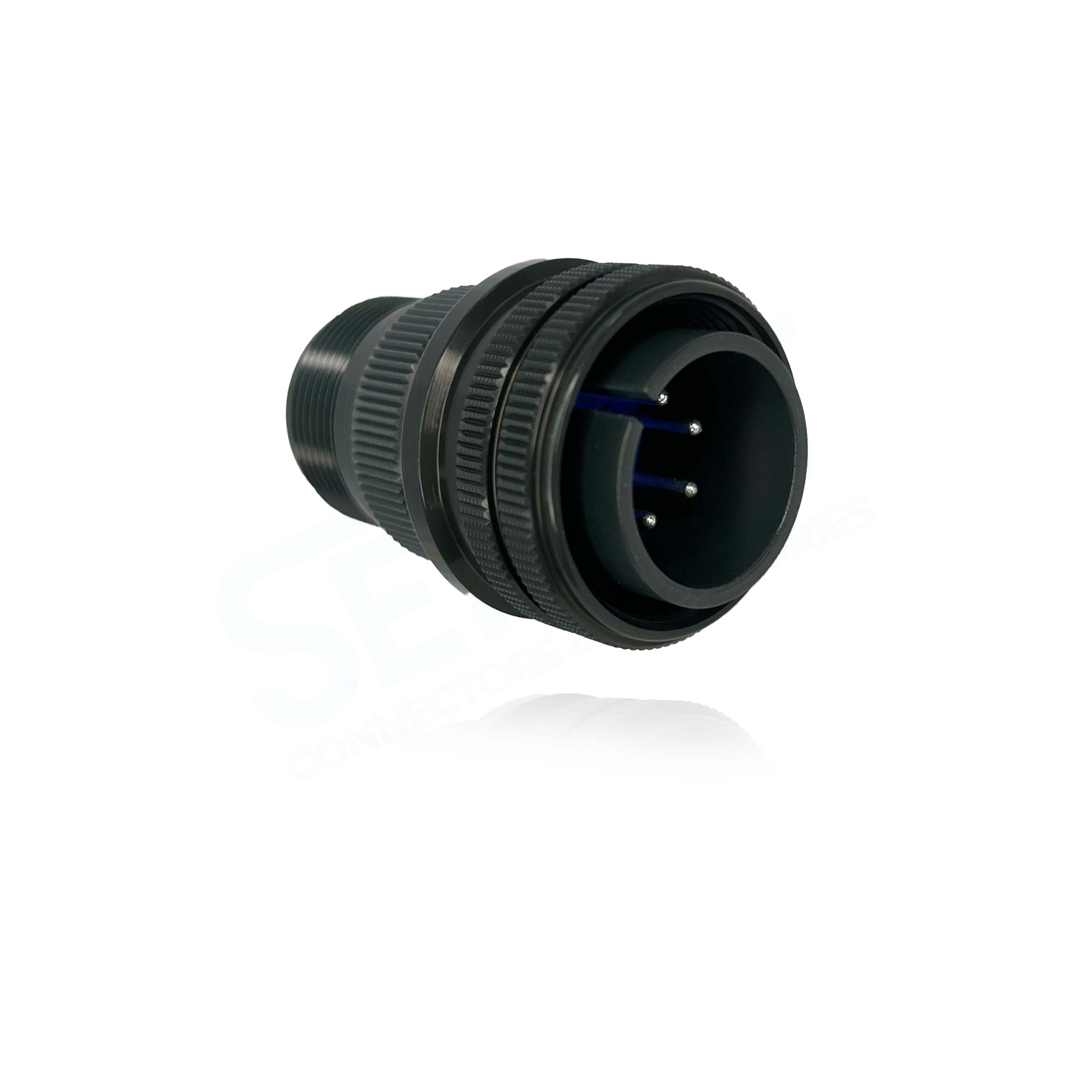

D/MS3106A18-12P Straight Plug, Black Trivalent Chromate, Shell Size 18 with 6#16 Pin Contacts
Manufacturer: | Fujikura |
---|---|
RoHS: | |
Datasheet: | D/MS3106A18-12P Datasheet |
Additional: |
Mating Products
D/MS3100A18-12S
Wall Mount Receptacle 18 SOCKET |
|
D/MS3101A18-12S
Cable Receptacle 18 SOCKET |
|
D/MS3102A18-12S
Box Mount Receptacle 18 SOCKET |
