| Manufacturer | |
|---|---|
| Angle | Straight |
| Colour | Black |
| Connector Style | Straight Plug |
| Contact Gender | Pin – Male |
| Contact Plating | Silver (Standard) |
| Contact Size | 5#16 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Normal |
| Insert Arrangement | 45614 |
| No of Contacts | 5 |
| Insulation Resistance | 5000M? min. at 500V DC |
| Qualified | MIL-DTL-5015 |
| RoHS Compliant | Yes |
| Series | D/MS A/B |
| Shell Material | |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | |
| Specification | MIL-DTL-5015 |
| Termination Method | Solder |
| Operating Temperature | – 55?C – + 125?C – -67?F – +257?F |
DMS3106A18-11P

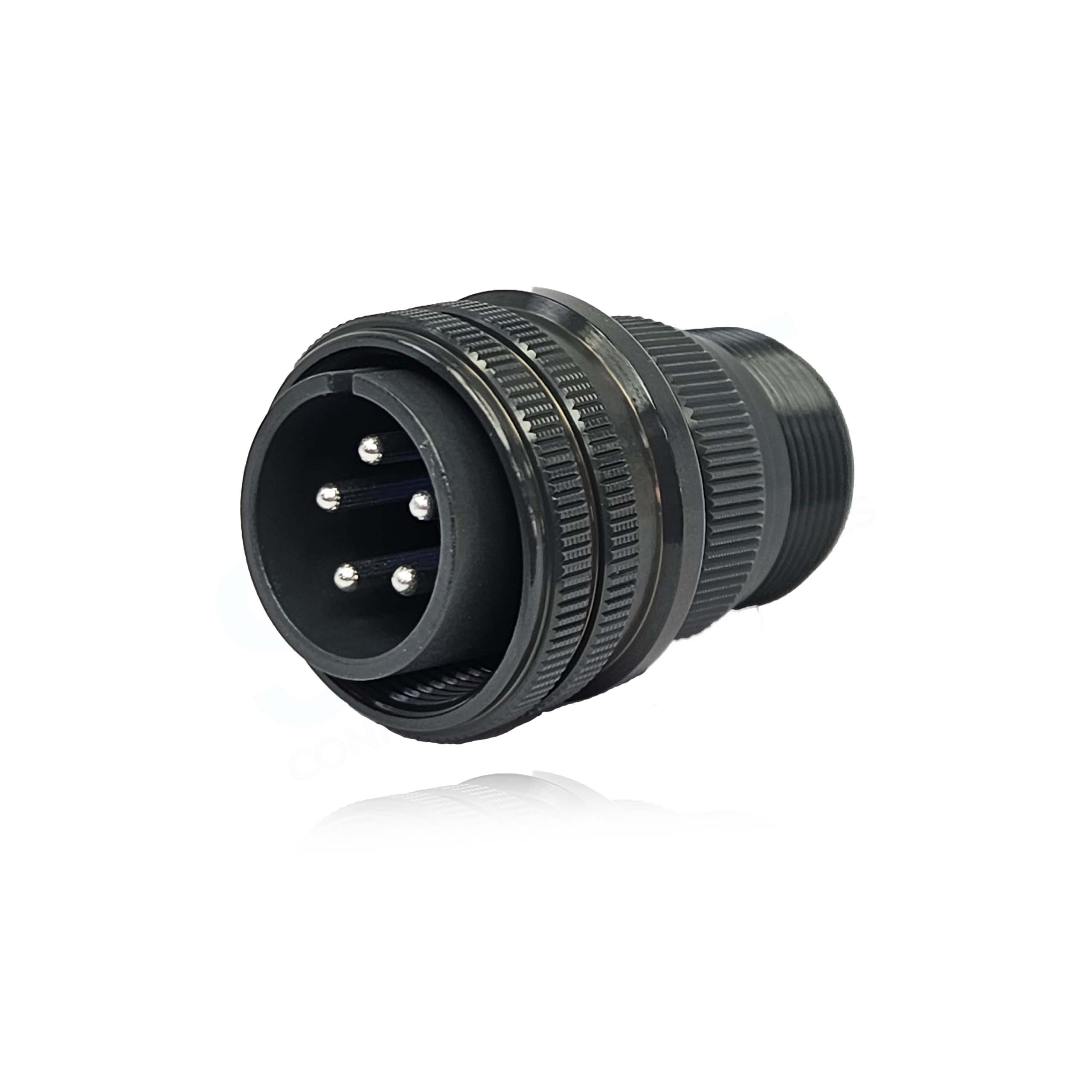

D/MS3106A18-11P Straight Plug, Black Trivalent Chromate, Shell Size 18 with 5#16 Pin Contacts
| Manufacturer: | Fujikura |
|---|---|
| RoHS: |  |
| Datasheet: | D/MS3106A18-11P Datasheet |
| Additional: |  |
Datasheet
Insert Arrangement
Mating Products
 |
D/MS3100A18-11S
Wall Mount Receptacle 18 SOCKET |
 |
D/MS3101A18-11S
Cable Receptacle 18 SOCKET |
 |
D/MS3102A18-11S
Box Mount Receptacle 18 SOCKET |
Accessories
 |
Dust Cap |
 |
Cable Clamp |
