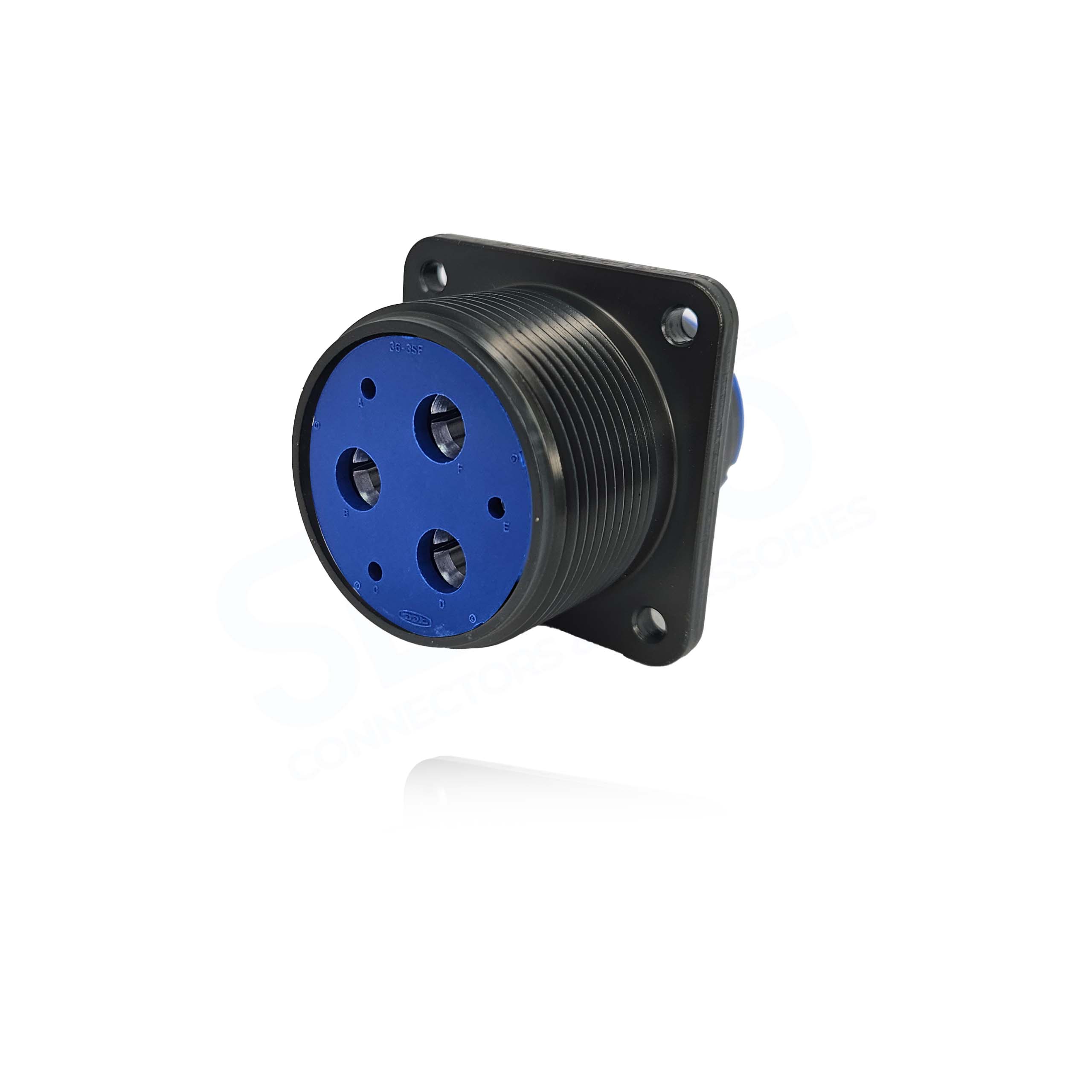

DMS3102A36-3S
D/MS3102A36-3S Wall Mount Receptacle, Black Trivalent Chromate, Shell Size 36 with 3#0, 3#12 Socket Contacts.
| RoHS: Yes Delivery: 24 Hour Build |
| Manufacturer | |
|---|---|
| Angle | Straight |
| Colour | Black |
| Connector Style | Box Mount Receptacle |
| Contact Gender | Socket – Female |
| Contact Plating | Silver (Standard) |
| Contact Size | 3#0, 3#12 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Normal |
| Insert Arrangement | 36-3 |
| No of Contacts | 6 |
| Insulation Resistance | 5000M? min. at 500V DC |
| Qualified | MIL-DTL-5015 |
| RoHS Compliant | Yes |
| Series | D/MS A/B |
| Shell Material | |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | |
| Specification | MIL-DTL-5455 |
| Termination Method | Solder |
| Operating Temperature | – 55?C – + 125?C – -67?F – +257?F |
