DMS3102A32-2S

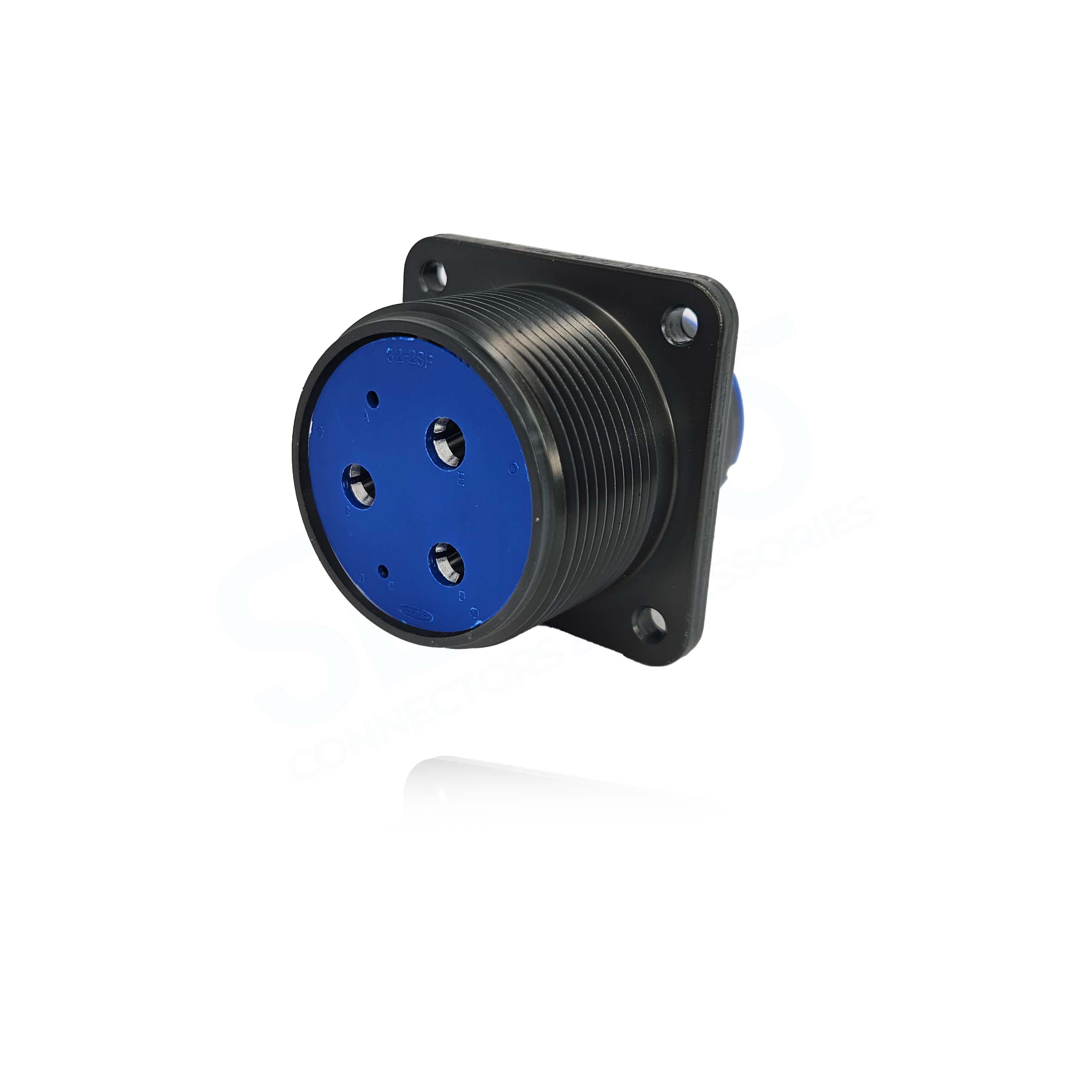

D/MS3102A32-2S Wall Mount Receptacle, Black Trivalent Chromate, Shell Size 32 with 3#4,2#16 Socket Contacts.
| RoHS: Yes Delivery: 24 Hour Build |
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Fujikura (DDK) |
|---|---|
| Connector Style | Box Mount Receptacle |
| Contact Gender | Socket – Female |
| Contact Plating | Silver (Standard) |
| Contact Size | 2#16, 3#4 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Normal |
| Insert Arrangement | 32-2 |
| No of Contacts | 5 |
| Shell Material | Aluminium Alloy / Zinc |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | 32 |
| Termination Method | Solder |
Environmental Specifications
| Operating Temperature | – 55°C – + 125°C – -67°F – +257°F |
|---|---|
| RoHS Compliant | Yes |
| Insulation Resistance | 5000M? min. at 500V DC |
Quality & Compliance
| Qualified | MIL-DTL-5015 |
|---|---|
| Specification | – |
| Series | D/MS A/B |
