Manufacturer | |
---|---|
Angle | Straight |
Colour | Black |
Connector Style | Box Mount Receptacle |
Contact Gender | Socket – Female |
Contact Plating | Silver (Standard) |
Contact Size | 1#12, 7#16 |
Contacts Supplied | Yes |
Coupling Style | Threaded |
Insert Keyway | Normal |
Insert Arrangement | 45522 |
No of Contacts | 8 |
Insulation Resistance | 5000M? min. at 500V DC |
Qualified | -55?C to +125?C – -67?F to +257?F |
RoHS Compliant | Yes |
Series | D/MS A/B |
Shell Material | |
Shell Plating | Trivalent Chromium Treatment (Black) |
Shell Size | |
Specification | MIL-DTL-5015 |
Termination Method | Solder |
DMS3102A18-8S

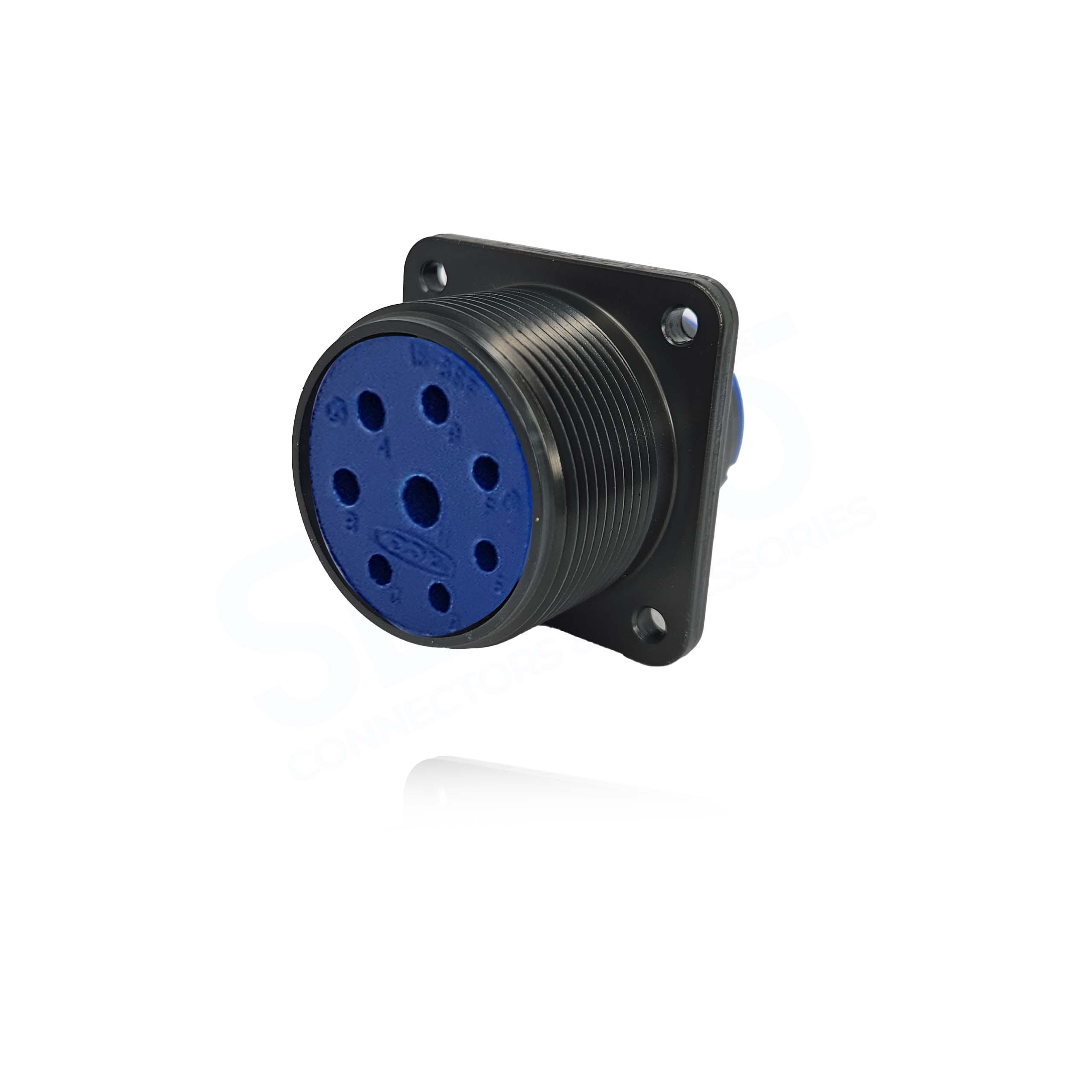

D/MS3102A18-8S Wall Mount Receptacle, Black Trivalent Chromate, Shell Size 18 with 1#12, 7#16 Socket Contacts
Manufacturer: | Fujikura |
---|---|
RoHS: | |
Datasheet: | D/MS3102A18-8S Datasheet |
Additional: |
