DMS3102A18-5P

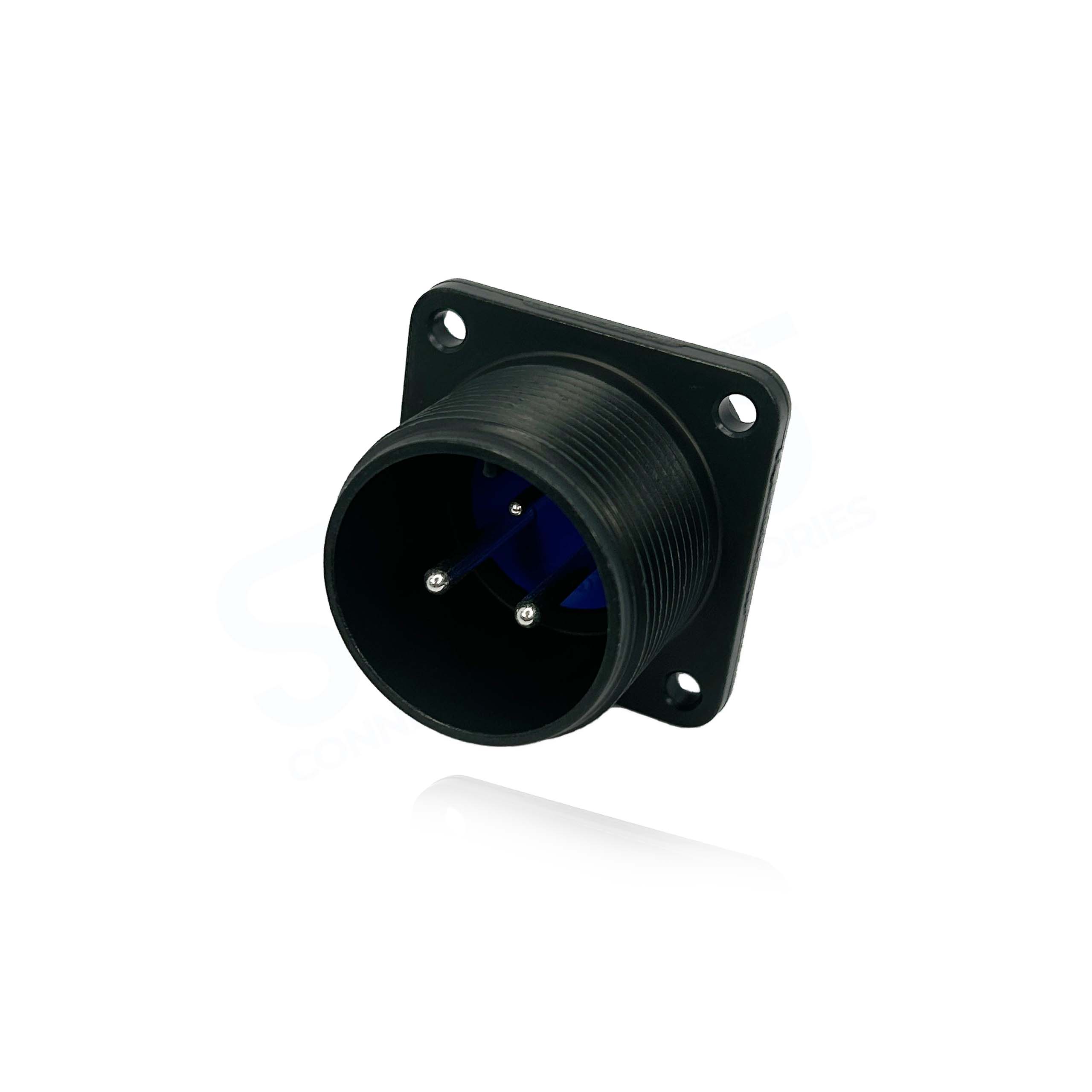

D/MS3102A18-5P Box Mounting Receptacle, Trivalent Chromate, Shell Size 18 with 2#12 and 1#16 Pin Contacts.
Click on part number below to check availabilty of accessory:
| Manufacturer | |
|---|---|
| Angle | Straight |
| Colour | Black |
| Connector Style | Box Mount Receptacle |
| Contact Gender | Pin – Male |
| Contact Plating | Silver (Standard) |
| Contact Size | 1#16, 2#12 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Normal |
| Insert Arrangement | 18-5 |
| No of Contacts | 3 |
| Insulation Resistance | 5000M? min. at 500V DC |
| Qualified | MIL-DTL-5015 |
| RoHS Compliant | Yes |
| Series | D/MS A/B |
| Shell Material | |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | |
| Specification | MIL-DTL-5015 |
| Termination Method | Solder |
| Operating Temperature | – 55°C – + 125°C – -67°F – +257°F |
Resources
Datasheet
Insert Arrangement
3D Model
The Fujikura DDK D/MS Series is compatible with MIL-DTL-5015 series connectors. The D/MS connector series is designed for aerospace, industrial, communications and test and measurement applications. The D/MS series features a quick and simple connection due to its pretinned and aligned solder pockets. This connector series features the unique blue removable insert.
Servo & Electronic Sales Ltd is a VAD for Fujikura (DDK) D/MS series connectors with a 24 hr turnaround.
