Manufacturer | |
---|---|
Angle | Straight |
Colour | Black |
Connector Style | Box Mount Receptacle |
Contact Gender | Pin – Male |
Contact Plating | Silver (Standard) |
Contact Size | 4#16 |
Contacts Supplied | Yes |
Coupling Style | Threaded |
Insert Keyway | Normal |
Insert Arrangement | 45400 |
No of Contacts | 4 |
Insulation Resistance | 5000M? min. at 500V DC |
Qualified | MIL-DTL-5015 |
RoHS Compliant | Yes |
Series | D/MS A/B |
Shell Material | |
Shell Plating | Trivalent Chromium Treatment (Black) |
Shell Size | |
Specification | MIL-DTL-5015 |
Termination Method | Solder |
Operating Temperature | – 55?C – + 125?C – -67?F – +257?F |
DMS3102A18-4P

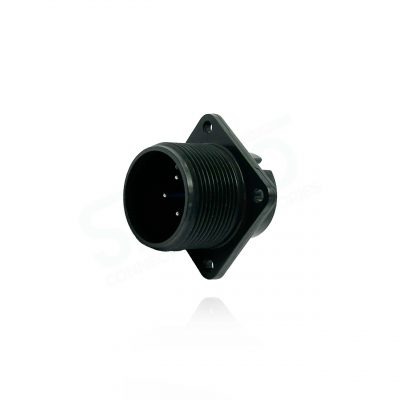

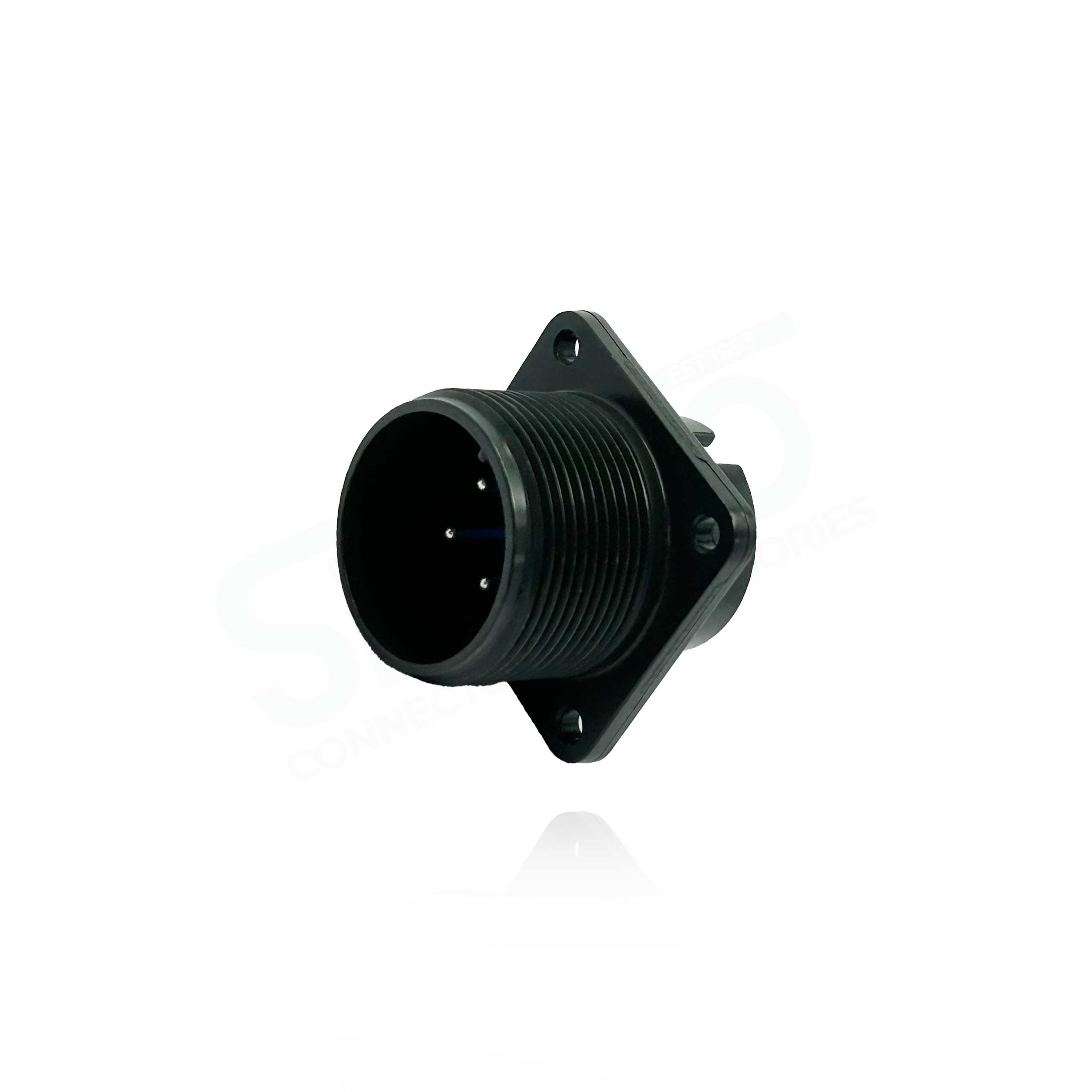

D/MS3102A18-4P Wall Mount Receptacle, Black Trivalent Chromate, Shell Size 18 with 4#16 Pin Contacts
Manufacturer: | Fujikura |
---|---|
RoHS: | |
Datasheet: | D/MS3102A18-4P Datasheet |
Additional: |
Mating Products
D/MS3106A18-4S
Straight Plug 18 SOCKET |
|
D/MS3106B18-4S
Straight Plug, Split Backshell 18 SOCKET |
|
D/MS3108B18-4S
Right Angle Plug, Split Backshell 18 SOCKET |
