DMS3102A16S-8P

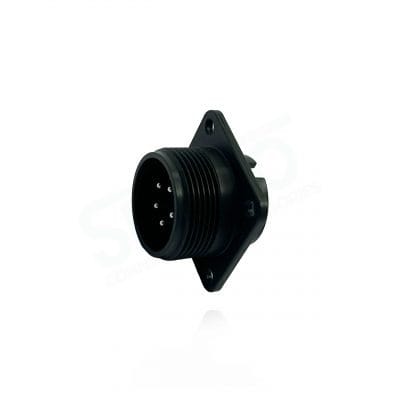

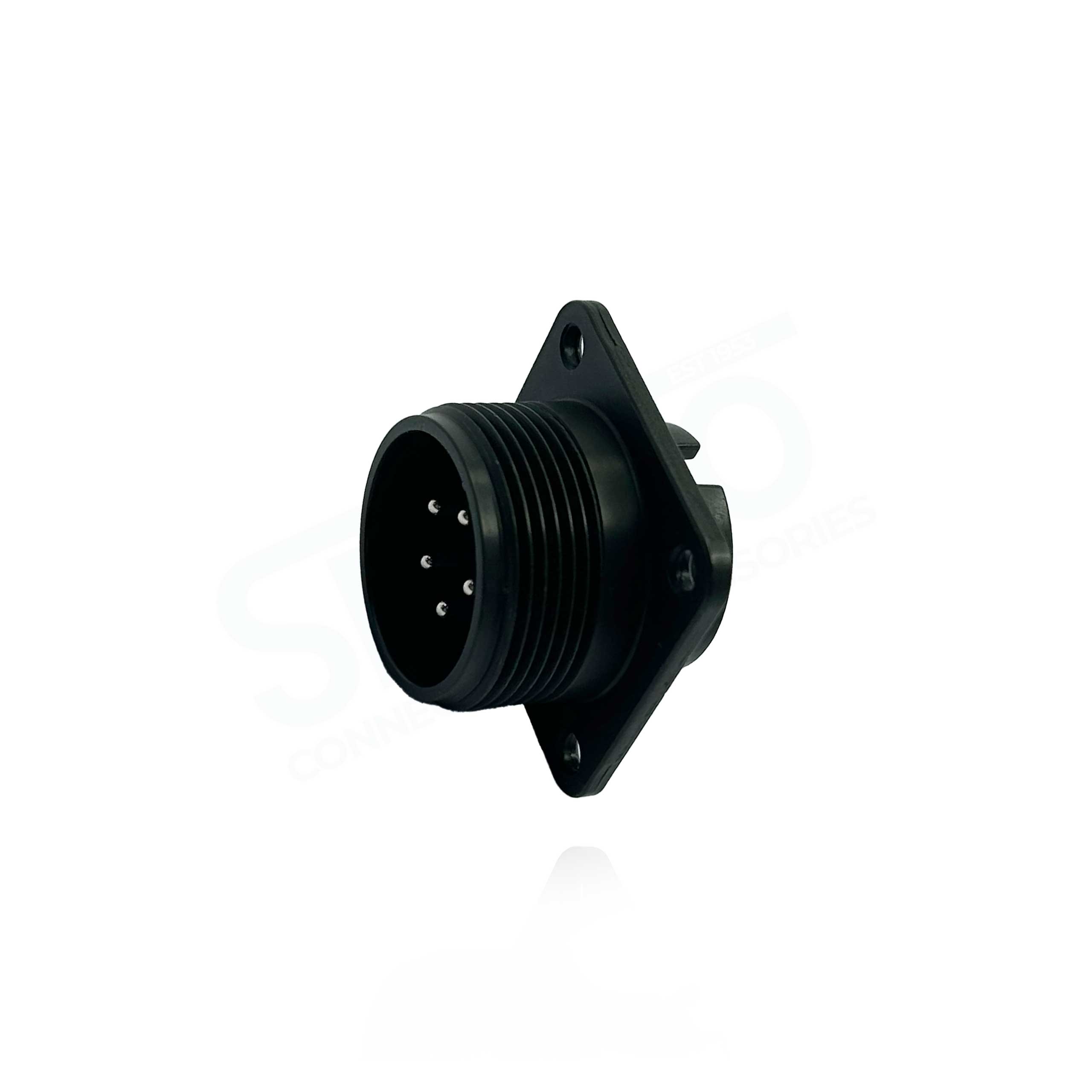

D/MS3102A16S-8P Wall Mount Receptacle, Black Trivalent Chromate, Shell Size 16S with 5#16 Pin Contacts.

RoHS: Yes
Delivery: 24 Hour Build
Fujikura (DDK)
Manufacturer

Angle

Straight

Colour

Black

Connector Style

Box Mount Receptacle

Contact Gender

Pin – Male

Contact Plating

Silver (Standard)

Contact Size

5#16

Contacts Supplied

Yes

Coupling Style

Threaded

Insert Keyway

Normal

Insert Arrangement

16S-8

No of Contacts

5

Insulation Resistance

5000M? min. at 500V DC

Qualified

MIL-DTL-5015

RoHS Compliant

Yes

Series

D/MS A/B

Shell Material

Shell Plating

Trivalent Chromium Treatment (Black)

Shell Size

Specification

MIL-DTL-5308

Termination Method

Solder

Operating Temperature

– 55?C – + 125?C – -67?F – +257?F

Ordering Information

32 in stock (can be backordered)

Require more? Enquire Here

Resources

Datasheet

DMS Datasheet

3D Model

3d file format 10 types View10 ezgif.com webp to jpg converter
