DMS3101A28-15PW

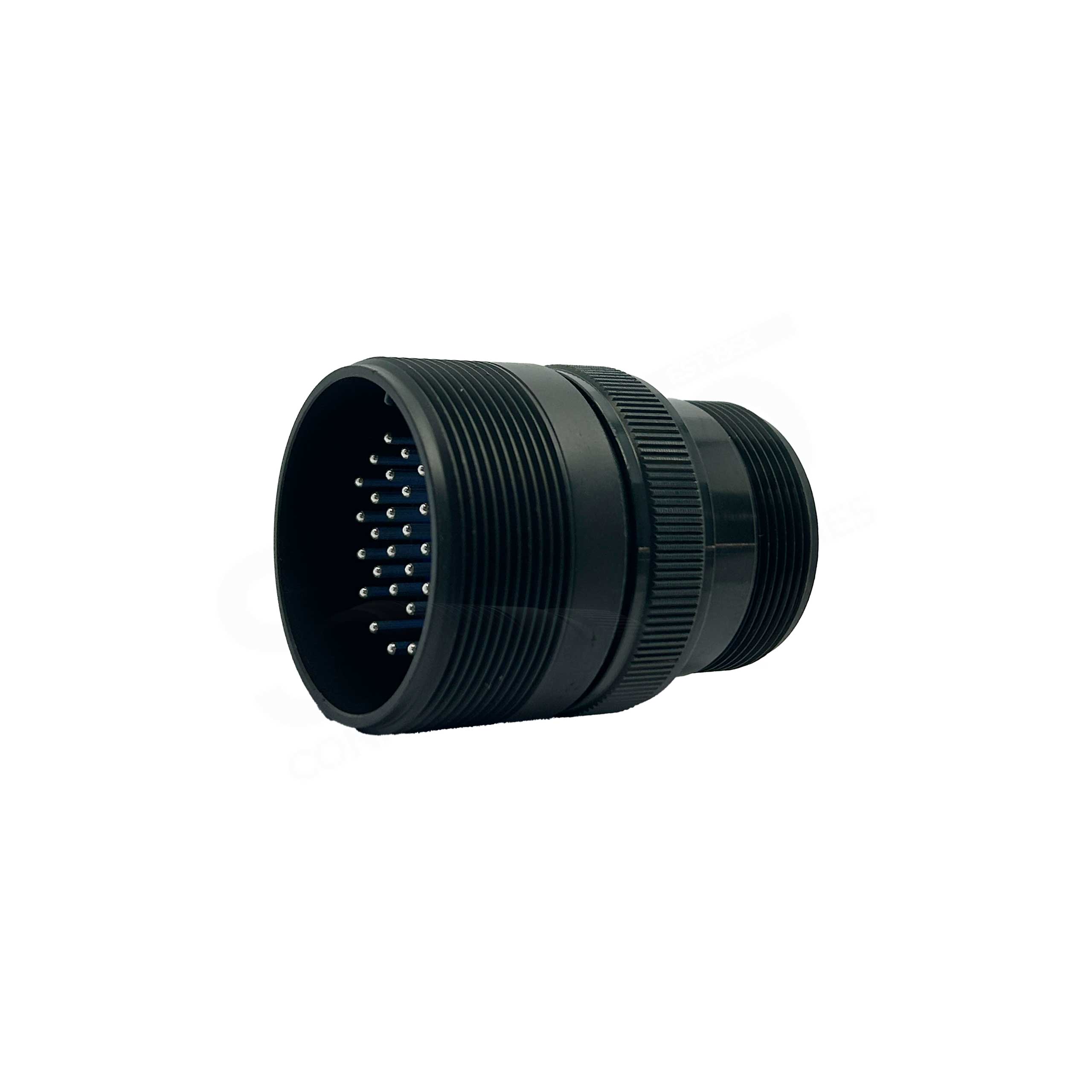

D/MS3101A28-15PW Cable Connecting Receptacle, Black Trivalent Chromate, Shell Size 28 with 35#16 Pin Contacts, W Orientation.
| Manufacturer: | Fujikura |
|---|---|
| RoHS: |  |
| Datasheet: | D/MS3101A28-15PW Datasheet |
| Additional: |  |
| Manufacturer | |
|---|---|
| Angle | Straight |
| Colour | Black |
| Connector Style | Cable Connecting Receptacle |
| Contact Gender | Pin – Male |
| Contact Plating | Silver (Standard) |
| Contact Size | 28#21 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | W |
| Insert Arrangement | 28-15 |
| No of Contacts | 35 |
| Insulation Resistance | 5000M? min. at 500V DC |
| Qualified | MIL-DTL-5015 |
| RoHS Compliant | Yes |
| Series | D/MS A/B |
| Shell Material | |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | |
| Specification | MIL-DTL-5015 |
| Termination Method | Solder |
| Operating Temperature | – 55?C – + 125?C – -67?F – +257?F |
Resources
Datasheet
Insert Arrangement
Mating Products
 |
D/MS3106A28-15SW
Straight Plug 28 SOCKET |
 |
D/MS3106B28-15SW
Straight Plug, Split Backshell 28 SOCKET |
 |
D/MS3108B28-15SW
Right Angle Plug, Split Backshell 28 SOCKET |
Accessories
 |
Dust Cap |
