DMS3101A24-28PX

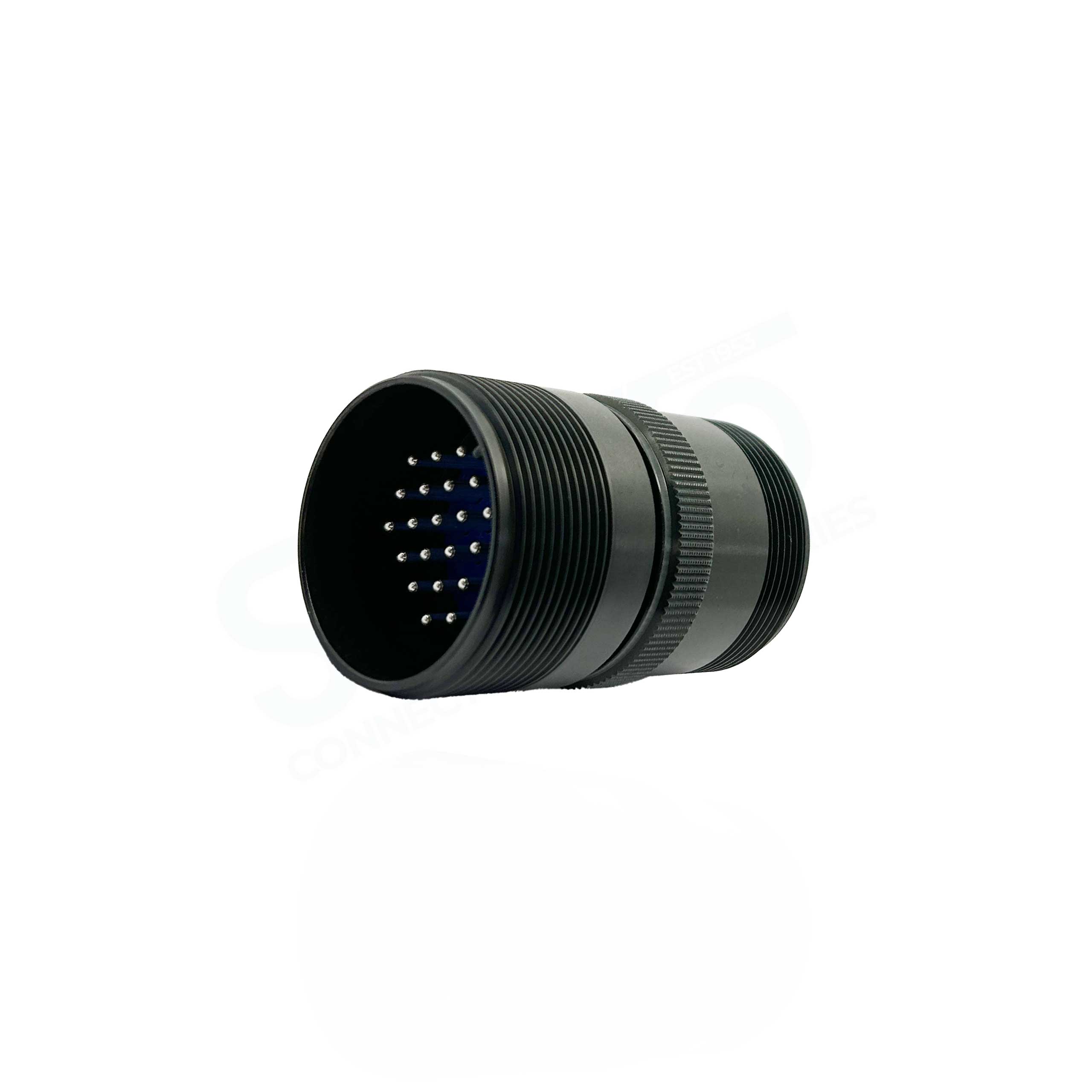

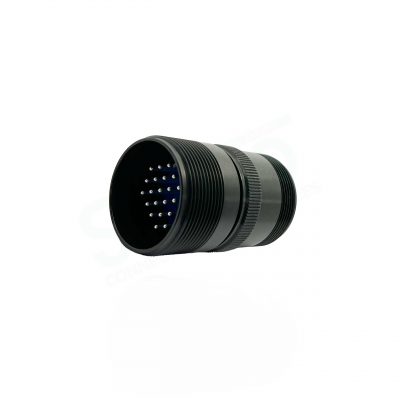

D/MS3101A24-28PX Cable Connecting Receptacle, Trivalent Chromate, Shell Size 24 with 24#16 Pin Contacts, X Orienation.
Click on part number below to check availabilty of accessory:
| Manufacturer | |
|---|---|
| Angle | Straight |
| Colour | Black |
| Connector Style | Cable Connecting Receptacle |
| Contact Gender | Pin – Male |
| Contact Plating | Silver (Standard) |
| Contact Size | 24#28 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | X |
| Insert Arrangement | 24-28 |
| No of Contacts | 24 |
| Insulation Resistance | 5000M? min. at 500V DC |
| Qualified | MIL-DTL-5015 |
| RoHS Compliant | Yes |
| Series | D/MS A/B |
| Shell Material | |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | |
| Specification | MIL-DTL-5015 |
| Termination Method | Solder |
| Operating Temperature | – 55?C – + 125?C – -67?F – +257?F |
Resources
Datasheet
Insert Arrangement
Mating Products
 |
D/MS3106A24-28SX
Straight Plug 24 SOCKET |
 |
D/MS3106B24-28SX
Straight Plug, Split Backshell 24 SOCKET |
 |
D/MS3108B24-28SX
Right Angle Plug, Split Backshell 24 SOCKET |
Accessories
 |
Dust Cap |
