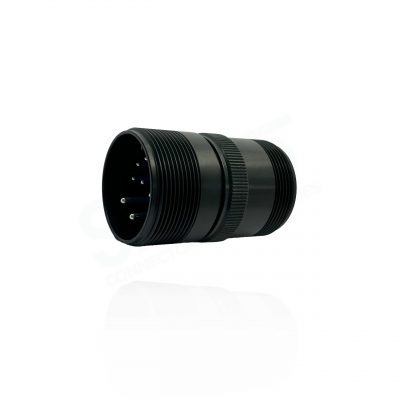

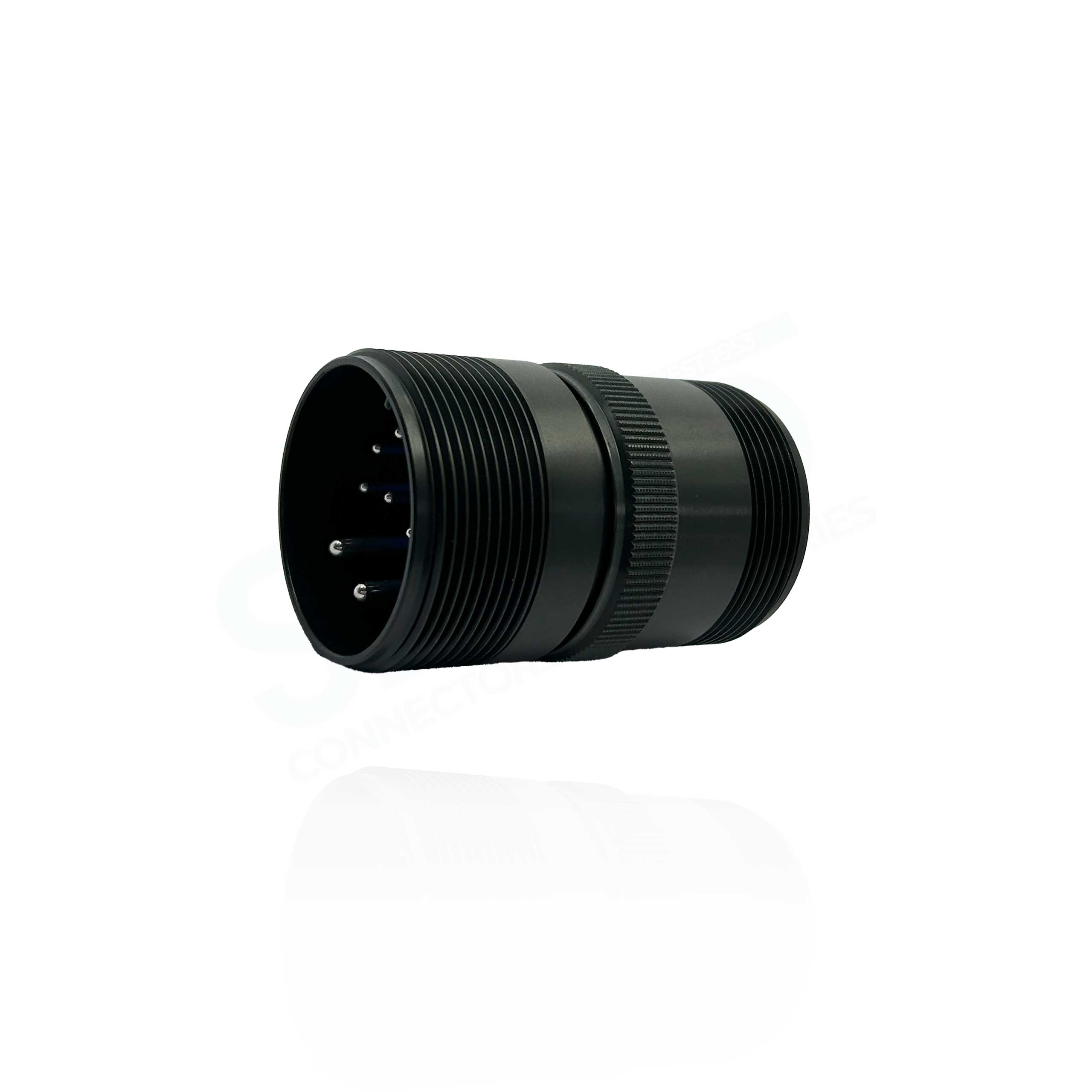

DMS3101A24-20P

D/MS3101A24-20P Cable Connecting Receptacle, Black Trivalent Chromate, Shell Size 24 with 2#12, 9#16 Pin Contacts

RoHS: Yes
Delivery: 24 Hour Build
Fujikura (DDK)
Manufacturer

Angle

Straight

Colour

Black

Connector Style

Cable Connecting Receptacle

Contact Gender

Pin – Male

Contact Plating

Silver (Standard)

Contact Size

2#12, 9#16

Contacts Supplied

Yes

Coupling Style

Threaded

Insert Keyway

Normal

Insert Arrangement

24-20

No of Contacts

11

Insulation Resistance

5000M? min. at 500V DC

Qualified

MIL-DTL-5015

RoHS Compliant

Yes

Series

D/MS A/B

Shell Material

Shell Plating

Trivalent Chromium Treatment (Black)

Shell Size

Specification

MIL-DTL-5220

Termination Method

Solder

Operating Temperature

– 55?C – + 125?C – -67?F – +257?F

Ordering Information

10 in stock (can be backordered)

Require more? Enquire Here

Resources

Datasheet

DMS Datasheet

Insert Arrangement

24 20 Contact Layout DMS5015

Mating Products

DMS3106A24 20S D/MS3106A24-20S

Straight Plug 24 SOCKET

DMS3106b24 20S D/MS3106B24-20S

Straight Plug, Split Backshell 24 SOCKET

dms3108b24 20S D/MS3108B24-20S

Right Angle Plug, Split Backshell 24 SOCKET

Accessories

DMS25043 Dust Cap
Dust Cap

D/MS25043-24DK

Comparable Products
