DMS3101A20-15PZ

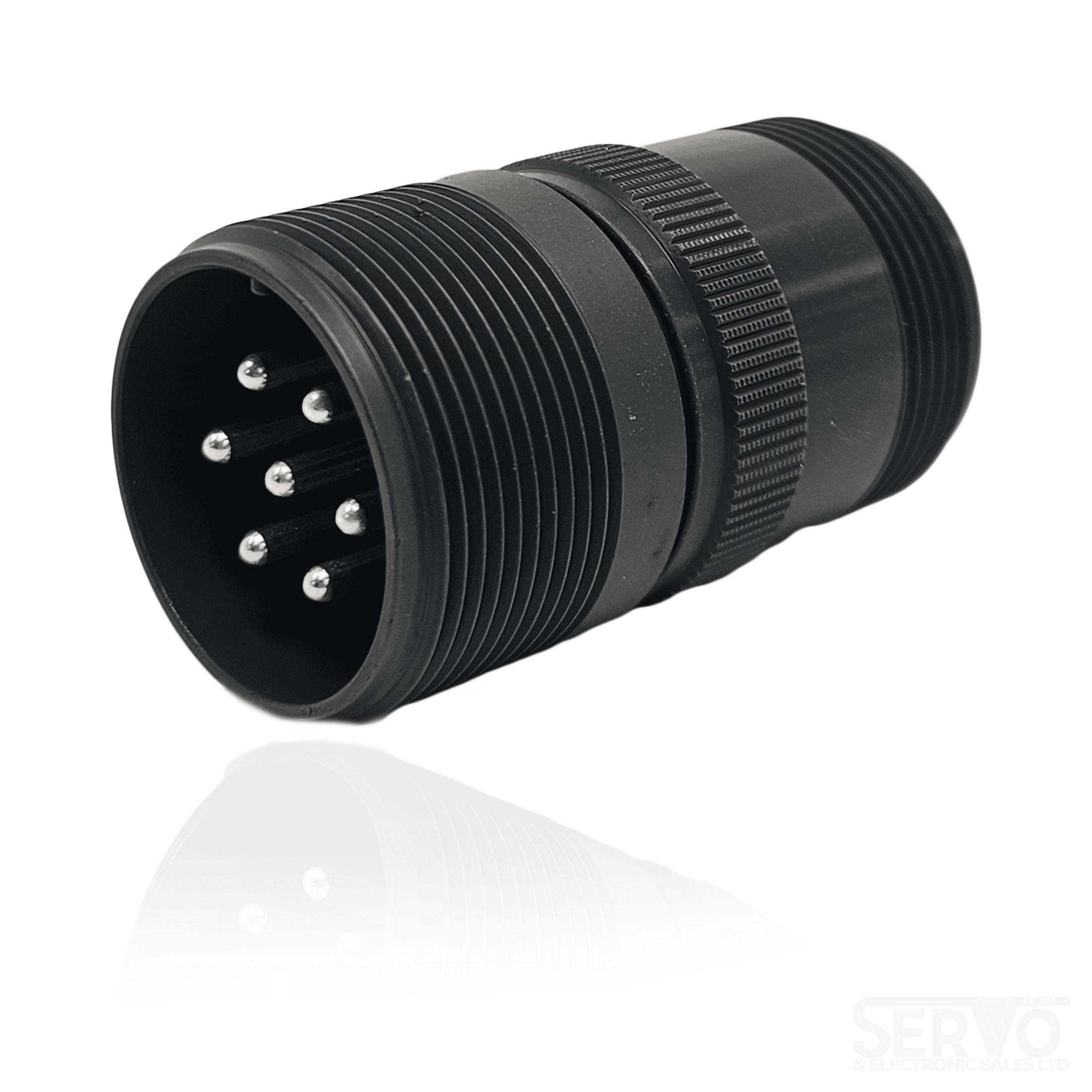

D/MS3101A20-15PZ Cable Connecting Receptacle, Trivalent Chromate, Shell Size 20 with 7#12 Pin Contacts, Z Orientation.
Click on part number below to check availabilty of accessory:
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Fujikura (DDK) |
|---|---|
| Connector Style | Cable Connecting Receptacle |
| Contact Gender | Pin – Male |
| Contact Plating | Silver (Standard) |
| Contact Size | 7#12 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Z |
| Insert Arrangement | 20-15 |
| No of Contacts | 7 |
| Shell Material | Aluminium Alloy / Zinc |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | 20 |
| Termination Method | Solder |
Environmental Specifications
| Operating Temperature | – 55°C – + 125°C – -67°F – +257°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | MIL-DTL-5015 |
|---|---|
| Specification | – |
| Series | D/MS A/B |
