DMS3100A28-11P

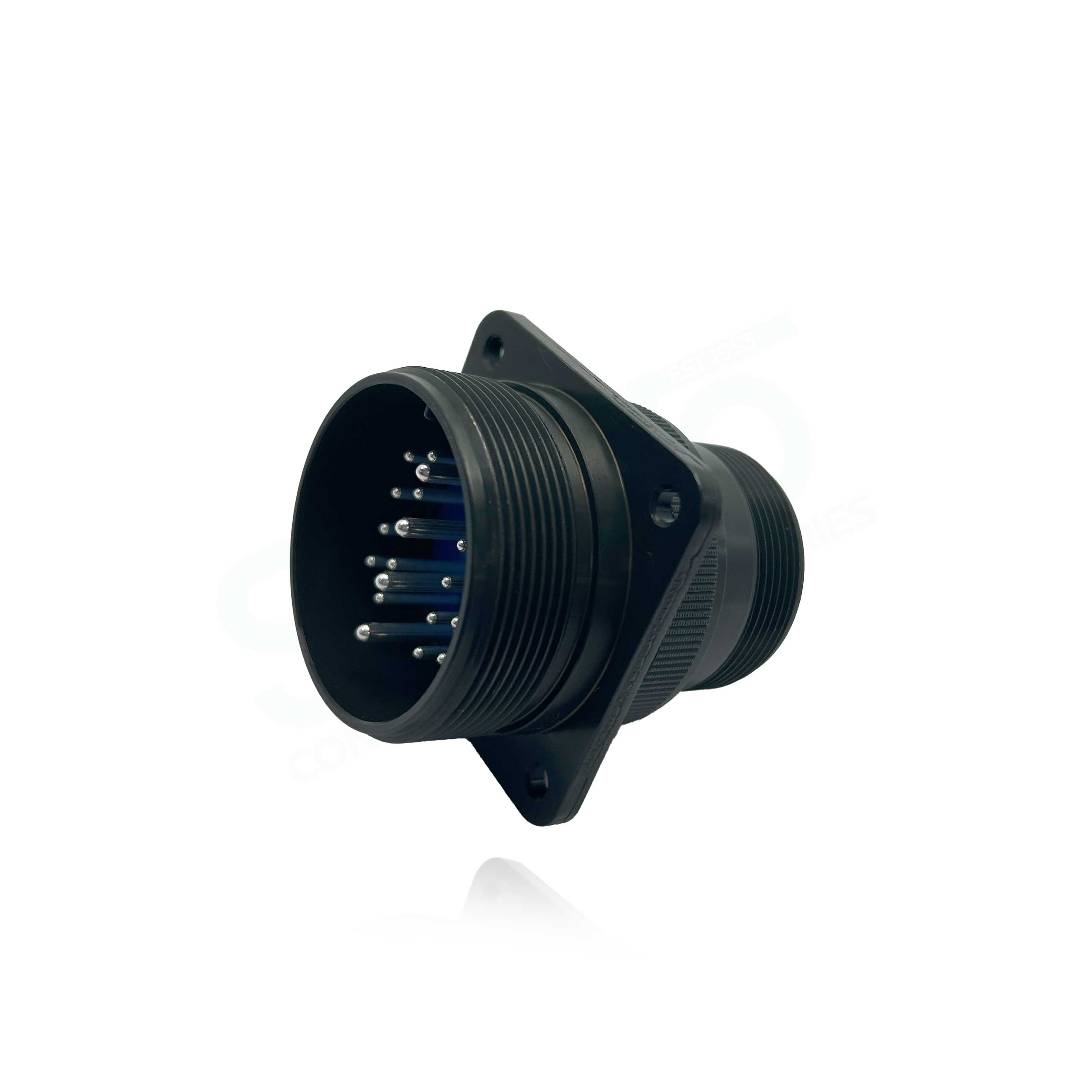

D/MS3100A28-11P Wall Mount Receptacle, Black Trivalent Chromate, Shell Size 28 with 4#12, 18#16 Pin Contacts.
| RoHS: Yes Delivery: 24 Hour Build |
| Manufacturer | |
|---|---|
| Angle | Straight |
| Colour | Black |
| Connector Style | Wall Mount Receptacle |
| Contact Gender | Pin – Male |
| Contact Plating | Silver (Standard) |
| Contact Size | 18#16, 4#12 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Normal |
| Insert Arrangement | 28-11 |
| No of Contacts | 22 |
| Insulation Resistance | 5000M? min. at 500V DC |
| Qualified | MIL-DTL-5015 |
| RoHS Compliant | Yes |
| Series | D/MS A/B |
| Shell Material | |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | |
| Specification | |
| Termination Method | Solder |
| Operating Temperature | – 55°C – + 125°C – -67°F – +257°F |
