D38999/24KE6AD

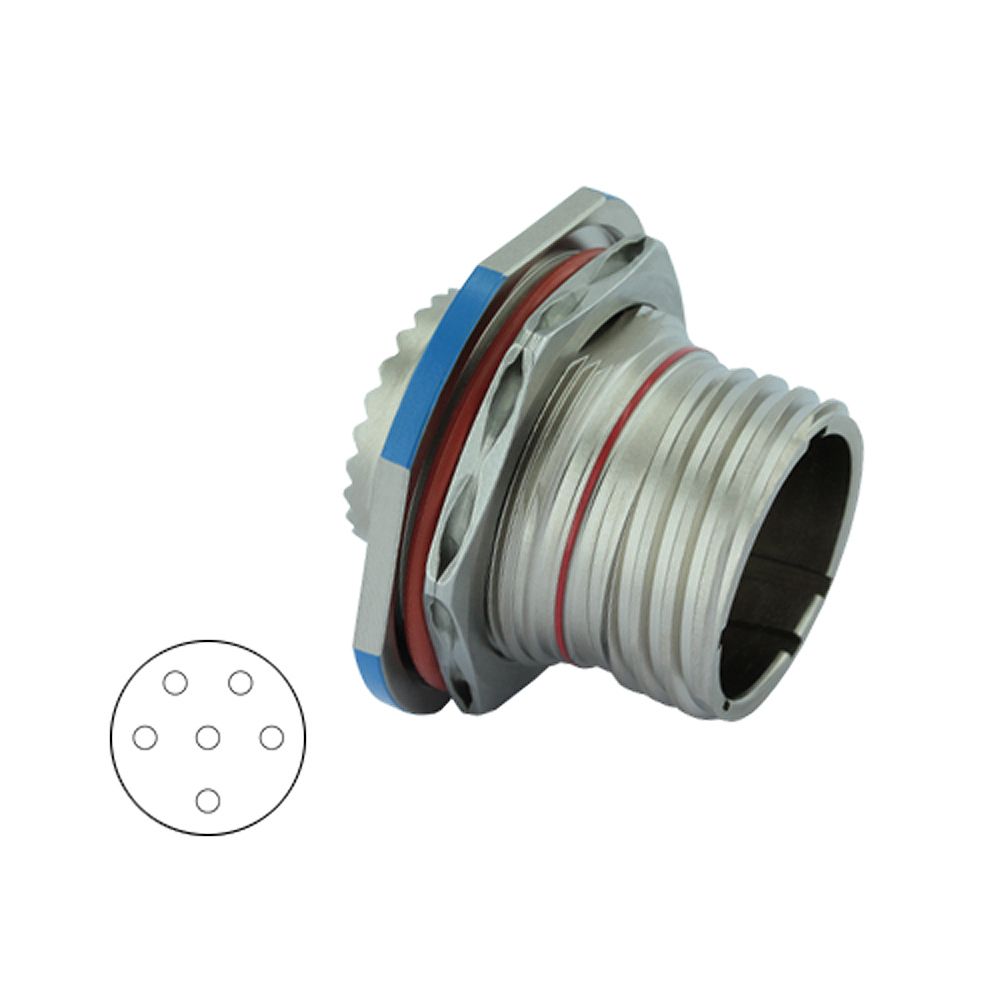

D38999/24KE6AD, Jam Nut Receptacle, Shell Size 17 with Passivated Stainless Steel (K) Plating, 6#12 Less Pin Contacts, D Orientation.
| RoHS: Yes Delivery: 48 Hour Build |
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 6#12 |
| Contacts Supplied | No |
| Insert Keyway | D |
| Insert Arrangement | 17-Jun |
| No of Contacts | 6 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 17 (E) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65?C +200?C – -85?F +392?F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Military Spec |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
