BG220VA

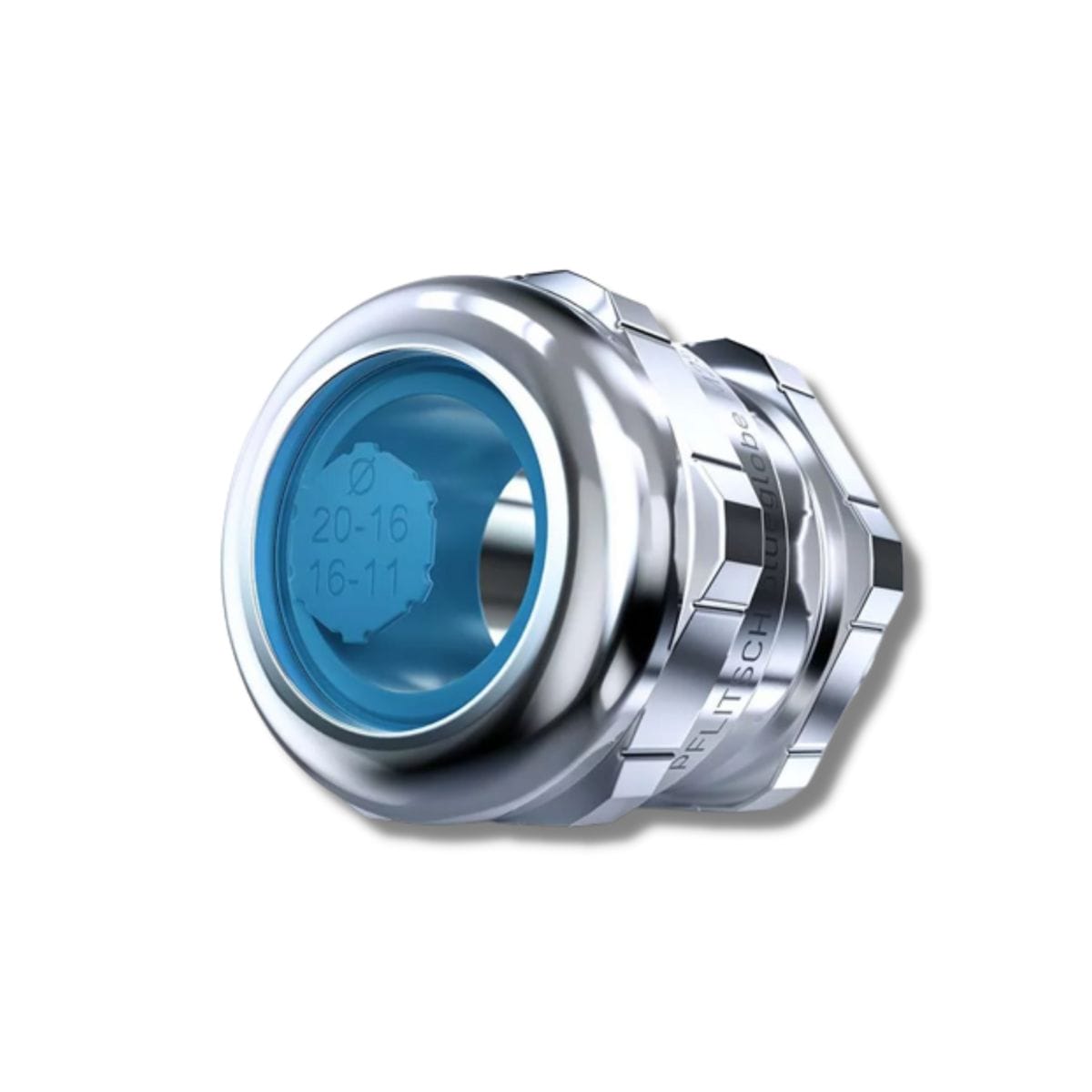

BG220VA blueGLOBE PFLITSCH, Stainless Steel features a blue, spherical sealing insert, which sets new standards for strain relief values that easily exceed standard requirements. With IP 68 protection up to 15 bar for one hour, PFLITSCH has set benchmarks regarding dust and water ingress. Additionally, the blueglobe cable gland can withstand water jets under pressure, making it a reliable option for all your cable sealing needs. What sets the blueglobe apart from conventional glands is its optimised distribution of forces, which concentrates all forces optimally onto the inserted cable and encloses it over a large surface. This approach avoids stress concentration from occurring with lamellar systems, making it a reliable option for stress-free cable sheathing. The injection-moulded inlets can enlarge the sealing ranges of a rated size by as much as 100%, making it easier for you to reliably seal all cable diameters from 4 mm to 32 mm, while conventional glands need up to five sizes to accomplish this. 7With an impressive range of features such as strain relief up to class B, EN 62444, protection class IP 66 or IP 68 up to 15 bar, wide sealing ranges, and clear identification on the product, the blueglobe cable gland is a reliable and trusted choice. It offers gentle cable seal over a large surface, good resistance to vibration, double nipple, and pressure screw with an identical spanner width. The gland bodies are made of brass, stainless steel, or plastic, making it a versatile option for various applications. With a temperature resistance from –40 °C to +130 °C with TPE sealing inserts or from –55 °C to +200 °C with silicone inserts, you can rest assured that the blueglobe cable gland is made to withstand extreme conditions.
