8D0L13W35PB

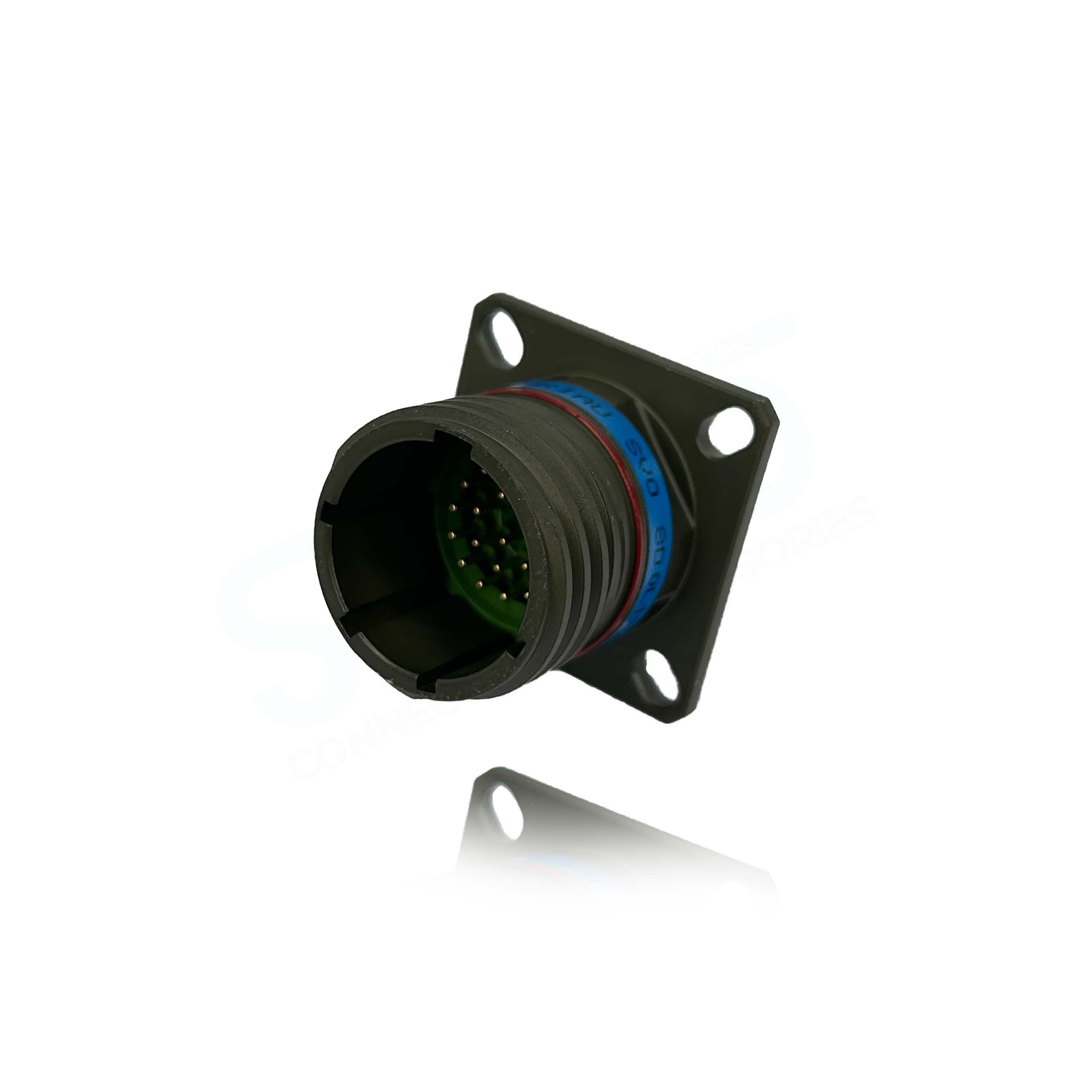

8D0L13W35PB Square Flange Receptacle, Shell Size 13 with Olive Green Cadmium Plating, 22#22D Pin Long PC Tail (PCB) Contacts, B Orientation.
| Can Ship In: | 72 Hrs |
| Can Ship In (Balance): | Request Lead Time |
| Manufacturer: | Eaton Souriau (VAD) |
Technical Information
| Manufacturer: | Eaton Souriau |
| Shell Style: | Square Flange Receptacle |
| Shell Material: | Aluminium Alloy |
| Shell Plating: | Olive Drab Cadmium |
| Shell Size: | 13 (C) |
| Contact Size: | 22#22D |
| Contact Gender: | Pin |
| Contact Type: | PC Tail – PCB |
| Insert Arrangement: | 13 – 35 |
| Series: | MIL-DTL-38999 Series III |
| Specification: | Commercial |
| RoHS: | Yes |
| Salt Spray: | 500 |
| Mating Cycles: | 500 |
| Mates With: | 8D513W35SB |
8D0L13W35PB Datasheet
|
Contact Layout
|
| Contact Gender | |
|---|---|
| Shell Material | |
| Insert Arrangement | |
| Manufacturer |
Resources
Eaton Souriau Mil Spec D38999 connectors are designed for harsh environments, designed to meet all corrosion, shock, endurance, or firewall capabilities required. The D38999 Series III connectors from Souriau Eaton are designed per MIL-DTL-38999 Series III, EN 3645, and BACC63CT/CU, BACC63DB/DC. Souriau Eaton circular connectors are also valid in 8D part numbers, which are both available to purchase through Servo Connectors. The MIL-DTL-38999 Series III is designed to meet aerospace, industrial and military applications with high contact density layouts, screw coupling with shell sizes 9 (A) to 25 (J), and a range of contacts, from high power, to ELIO fibre optic.
Servo and Electronic Sales are a VAD (Value Added Distributor) for Souriau Eaton D38999 / MIL-DTL-38999 Series III Connectors.
