8D025W11SN

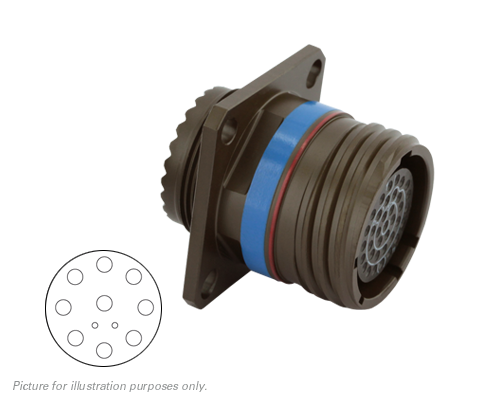

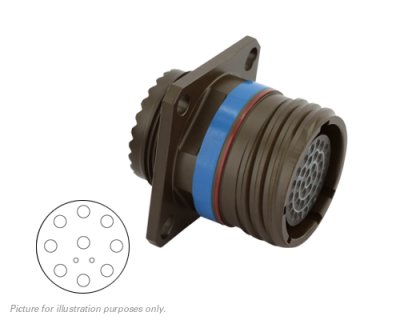

8D025W11SN, Square Flange Receptacle, Shell Size 25 with Cadmium Olive Drab (W) Plating, 2#20, 9#10 Socket Contacts.
RoHS Compliant: No
VAD: 48 Hours
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 2#20, 9#10 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 25-11 |
| No of Contacts | 11 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Olive Drab Cadmium (W) |
| Shell Size | 11 (B) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65?C +175?C – -85?F +347?F |
|---|---|
| RoHS Compliant | No |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
