8D025F44BC

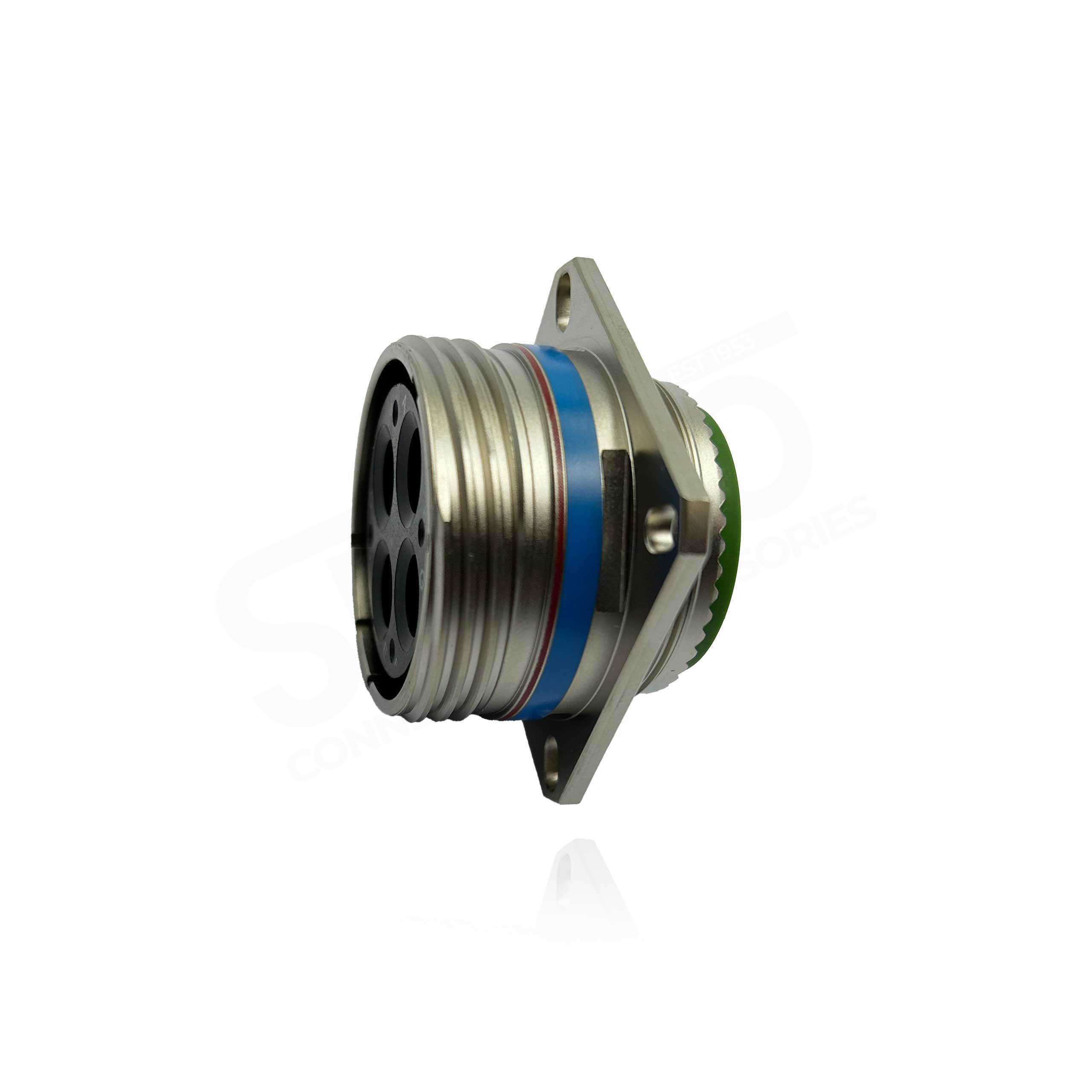

8D025F44BC, Square Flange Receptacle, Shell Size 25 with Aluminium Alloy Nickel (F) Plating, 4#165, 4#4 Power Less Socket Contacts, C Orientation.
RoHS Compliant: Yes
VAD: 48 Hours
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 4#16, 4#4 |
| Contacts Supplied | No |
| Insert Keyway | C |
| Insert Arrangement | 25-44 |
| No of Contacts | 8 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Nickel (F) |
| Shell Size | 25 (J) |
| Termination Method | Crimp, Power |
Environmental Specifications
| Operating Temperature | -65?C +200?C – -85?F +392?F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
