8D015K18SN

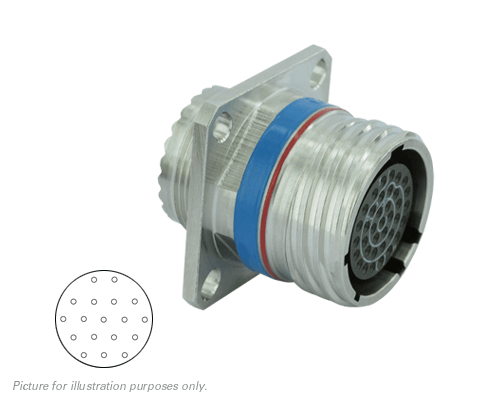

8D015K18SN, Square Flange Receptacle, Shell Size 15 with Passivated Stainless Steel (K) Plating, 18#20 Socket Contacts.
RoHS Compliant: Yes
VAD: 72 Hours
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 18#20 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 15-18 |
| No of Contacts | 18 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 15 (D) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65?C +200?C – -85?F +392?F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
