8D013W03PE

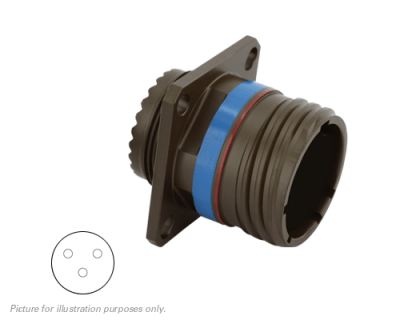

8D013W03PE, Square Flange Receptacle, Shell Size 13 with Cadmium Olive Drab (W) Plating, 3#16 Pin Contacts, E Orientation.
| RoHS: No Delivery: 48 Hour Build |
RoHS Compliant: No
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 3#16 |
| Contacts Supplied | Yes |
| Insert Keyway | E |
| Insert Arrangement | 13-03 |
| No of Contacts | 3 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Cadmium Olive Drab (W) |
| Shell Size | 13 (C) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65?C +175?C – -85?F +347?F |
|---|---|
| RoHS Compliant | No |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
