8D011F02BE

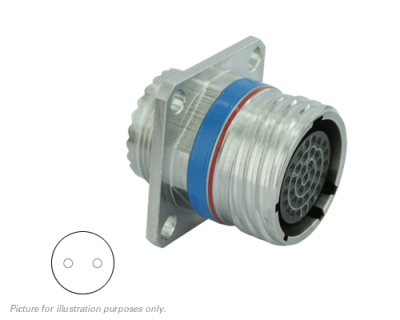

8D011F02BE, Square Flange Receptacle, Shell Size 11 with Aluminium Nickel Plating, 2#16 Less Socket Contacts, E Orientation.
| Manufacturer | |
|---|---|
| Series | MIL-DTL-38999 Series III |
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Shell Material | |
| Shell Plating | Nickel (F) |
| Shell Size | |
| Contact Size | 2#16 |
| Contact Gender | Less Socket Contacts |
| Contacts Supplied | No |
| Sealing | IP67 |
| Operating Temperature | -65°C +200°C – -85°F +392°F |
| Insert Keyway | E |
| RoHS Compliant | Yes |
| Salt Spray | 48 Hours |
| Shell Continuity | 1 m? |
| Shielding | 65 db at 10 GHz |
| Mating Cycles | 500 |
| Qualified | Yes – Commercial Version |
| Insert Arrangement | 11-2 |
| Connector Style | Square Flange Receptacle |
Resources
Eaton Souriau 8D011F02BE, is a MIL-DTL-38999 Series III Square Flange Receptacle circular connector, with Aluminium Nickel Plating.
Eaton Souriau MIL-DTL-38999 series III Connectors
Eaton Souriau Mil Spec D38999 connectors are designed for harsh environments, designed to meet all corrosion, shock, endurance or firewall capabilities required. The D38999 Series III connectors from Souriau Eaton are designed in accordance with MIL-DTL-38999 Series III, EN 3645 and BACC63CT/CU, BACC63DB/DC. Souriau Eaton circular connectors are also valid in 8D part numbers, which are both available to purchase through Servo Connectors. The MIL-DTL-38999 Series III is designed to meet aerospace, industrial and military applications with high contact density layouts, screw coupling with shell sizes 9 (A) to 25 (J) and a range of contacts, from high power, to ELIO fibre optic.
Servo and Electronic Sales are a VAD (Value Added Distributor) for Souriau Eaton D38999 / MIL-DTL-38999 Series III Connectors.
Cross Reference Guide:
Manufacturer:
Eaton Souriau
- D38999/26 or 8D5 – Straight Plug
- 48 Hour Assembly on Eaton Souriau D38999 or 8D Part Numbers
- 54 QPL Layouts available as per MIL-STD-1560
- 5 Materials and Platings Available
- MIL-DTL-38999 Series III, EN3645, BACC63 and CECC qualified
Intermateable with:
Features and Benefits
Why Servo Connectors?
Based in Kent (UK), Servo & Electronic Sales Ltd is a family run business with over 60 years experience of connectors, backshells and accessories. We have the capabilities and flexibility to offer 48 Hour Assembly on most Eaton Souriau D38999 (8D) parts. We stock a vast amount of part numbers from stock, or available to source a wide selection of part numbers to complete your connector solution. We are specalist Eaton Souriau Value Added Assemblers (VAD) in the UK, with our in-house specialist experts to ensure the quaility you need.
