8D009Z98AA

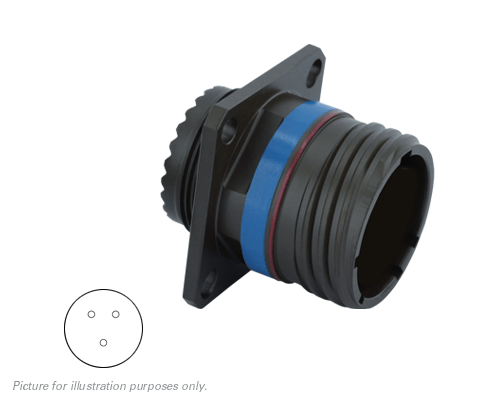

8D009Z98AA, Square Flange Receptacle, Shell Size 09 with Black Zinc Nickel (Z) Plating, 3#20 Less Pin Contacts, A Orientation.
| RoHS: Yes Delivery: 48 Hour Build |
| Manufacturer | |
|---|---|
| Connector Style | Square Flange Receptacle |
| Series | MIL-DTL-38999 Series III |
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Shell Material | |
| Shell Plating | Black Zinc Nickel (Z) |
| Shell Size | |
| No of Contacts | 3 |
| Contact Size | 6#22D |
| Contact Gender | Pin – Male |
| Contacts Supplied | No |
| Termination Method | Crimp |
| Sealing | IP67 |
| Operating Temperature | -65°C +200°C – -85°F +392°F |
| Insert Keyway | A |
| RoHS Compliant | Yes |
| Salt Spray | 500 Hrs |
| Shell Continuity | 2.5 m? |
| Shielding | 85 db at 1 GHz |
| Mating Cycles | 500 |
| Qualified | Yes – Commercial Version |
| Insert Arrangement | 9-98 |
