8D009K35BN

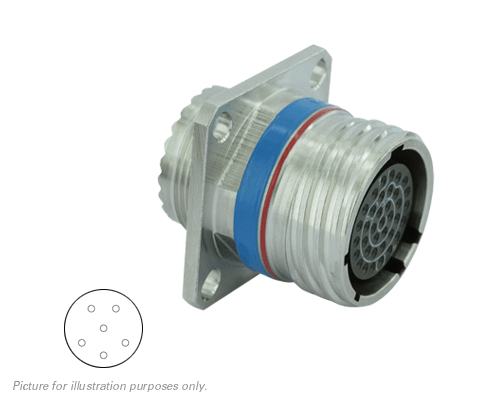

8D009K35BN, Square Flange Receptacle, Shell Size 09 with Passivated Stainless Steel (K) Plating, 6#22D Less Socket Contacts, N Orientation.
| RoHS Compliant: |  |
|---|---|
| Datasheet: | 8D Series Datasheet |
| Additional: |  |
| Manufacturer | |
|---|---|
| Series | MIL-DTL-38999 Series III |
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Shell Material | |
| Shell Plating | Passivated (K) |
| Shell Size | |
| No of Contacts | 6 |
| Contact Size | 6#22D |
| Contact Gender | Socket – Female |
| Contacts Supplied | No |
| Termination Method | Crimp |
| Sealing | IP67 |
| Operating Temperature | -65°C +200°C – -85°F +392°F |
| Insert Keyway | Normal |
| RoHS Compliant | Yes |
| Salt Spray | 500 Hours |
| Shell Continuity | 10 mΩ |
| Shielding | 45 db at 10 GHz |
| Mating Cycles | 500 |
| Qualified | Yes – Commercial Version |
| Insert Arrangement | 09 – 35 |
| Connector Style | Square Flange Receptacle |
