8D009K35AE

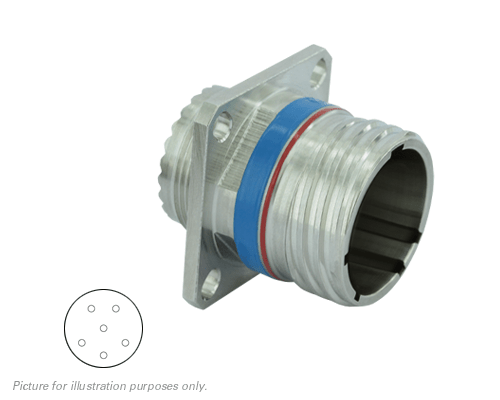

8D009K35AE, Square Flange Receptacle, Shell Size 09 with Passivated Stainless Steel (K) Plating, 6#22D Less Pin Contacts, E Orientation.
| RoHS: Yes Delivery: 72 Hour Build |
| Manufacturer | |
|---|---|
| Connector Style | Square Flange Receptacle |
| Series | MIL-DTL-38999 Series III |
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Shell Material | |
| Shell Plating | Passivated (K) |
| Shell Size | |
| No of Contacts | 6 |
| Contact Size | 6#22D |
| Contact Gender | Pin – Male |
| Contacts Supplied | No |
| Termination Method | Crimp |
| Sealing | IP67 |
| Operating Temperature | -65?C +200?C – -85?F +392?F |
| Insert Keyway | E |
| RoHS Compliant | Yes |
| Salt Spray | 500 Hrs |
| Shell Continuity | 10 m? |
| Shielding | 45 db at 10 GHz |
| Mating Cycles | 500 |
| Qualified | Yes – Commercial Version |
| Insert Arrangement | 09-35 |
