8D025F04AC

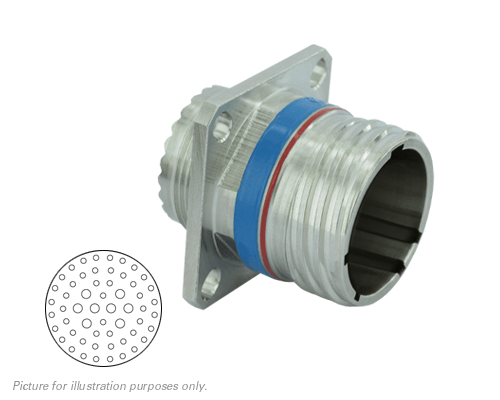

8D025F04AC, Square Flange Receptacle, Shell Size 25 with Aluminium Alloy Nickel (F) Plating, 48#20, 8#16 Less Pin Contacts, C Orientation.
| RoHS: Yes Delivery: 48 Hour Build |
| Manufacturer | |
|---|---|
| Connector Style | Square Flange Receptacle |
| Series | MIL-DTL-38999 Series III |
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Shell Material | |
| Shell Plating | Nickel (F) |
| Shell Size | |
| No of Contacts | 56 |
| Contact Size | 48#20, 8#16 |
| Contact Gender | Pin – Male |
| Contacts Supplied | No |
| Termination Method | Crimp |
| Sealing | IP67 |
| Operating Temperature | -65?C +200?C – -85?F +392?F |
| Insert Keyway | C |
| RoHS Compliant | Yes |
| Salt Spray | 48 Hrs |
| Shell Continuity | 1 m? |
| Shielding | 65 db at 10 GHz |
| Mating Cycles | 500 |
| Qualified | Yes – Commercial Version |
| Insert Arrangement | 25-Apr |
Resources
Datasheet
Insert Arrangement
Mates With
 |
D38999/20FJ4SC
Mil Spec Qualified |
|
EN3645F0JN04SC
EN3645 Qualified |
