85330ES2430S8

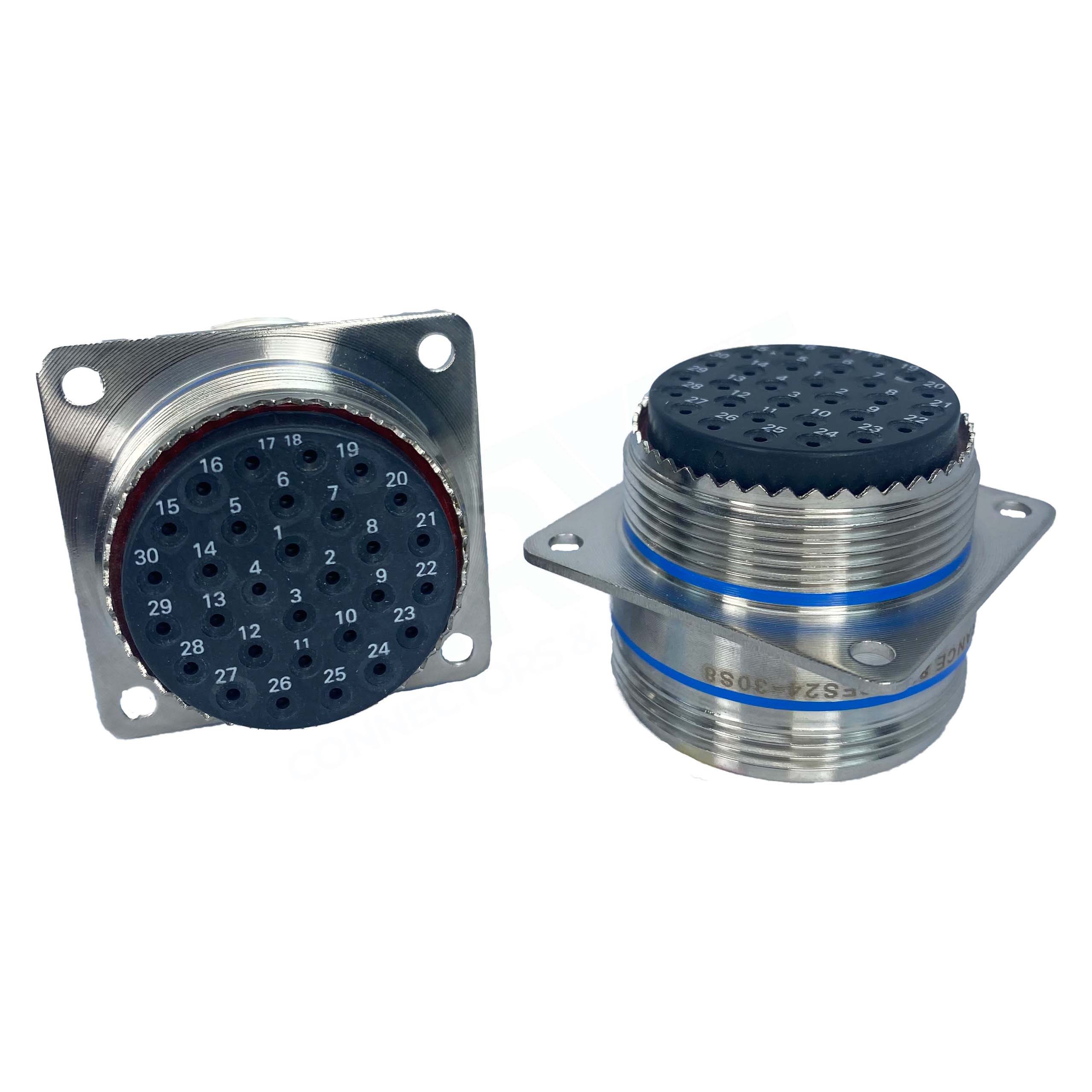

85330ES2430S8, Square Flange Receptacle, with 260? Stainless Steel Plating, with 360? teeth, Shell Size 24 with 30#16 Socket Contact, 8 Orientation.
[table “” not found /]
Technical Information
| Manufacturer: | Eaton Souriau |
| Shell Style: | Square Flange Receptacle |
| Shell Material: | Stainless Steel |
| Shell Plating: | Passivated |
| Coupling Method: | Screw Coupling |
| Shell Size: | 24 |
| Contact Gender: | Socket |
| Contact Size: | 30#16 |
| Contact Gender: | Female |
| Mating Cycles: |
500 |
| Orientation: | N |
| Operating Temperature: |
-65? to +200?C (-149? to +392?F) |
| Salt Spray: |
500 hrs |
| Insert Arrangement: | 24-30 |
| RoHS Compliant: | Yes |
| Series: | 853 Series |
| Specification: | QPL |
| Qualified Status: | Commercial |
| Cross Reference: | EN2997SE02430F8 |
ESC10 Datasheet
|
Contact Layout
|
| Contact Gender | |
|---|---|
| Shell Material | |
| Insert Arrangement | |
| Manufacturer |
Resources
85330ES2430S8 MIL-C-83723 ESC10, 8533, EN2997 standard circular connectors feature screw coupling locking with high vibration and temperature resistance (up to 260?C). 85330ES2430S8 853 Series is a circular connector series dedicated to applications in environments under high vibration constraints, EMI and temperatures. The 853 connector is a Square Flange Receptacle with Aluminium Olive Drab Cadmium plating, the 853 series are typically used within aerospace industries, in particular engines, sensors, external lighting, power and actuation. The 853 Series by Eaton Souriau provide upgraded vibration performance due to it’s self-locking mechanism with fine-pitched thread. The firewall design resists up to 260?C that provides a secure solution in case of engine fire. The 853 Eaton Souriau series meets the MIL-DTL-83723 design and offers additional features including shell to shell bottoming for enhanced peformance.
