84725A100N102

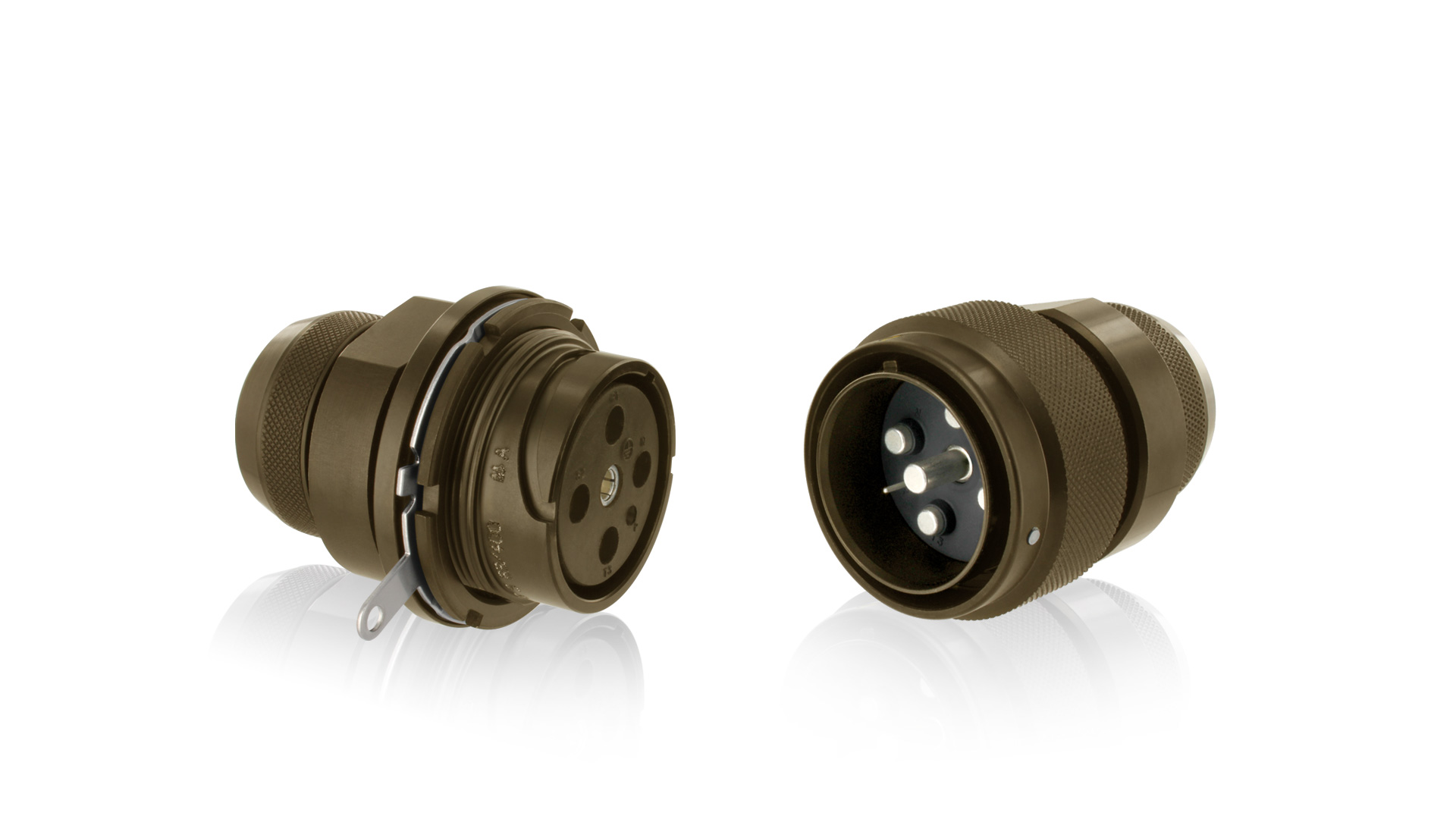

84725A100N102, Square Flange Receptacle, Smooth Holes without Thread for Backfitting, Contact Layout 25, with Crimp Pin Contacts, With Grommet, Without Pilot Contact, Olive Green Cadmium
| Additional: |  |
|---|---|
| Datasheet: |  |
| Manufacturer | |
|---|---|
| Series | 847 |
| Coupling Style | Bayonet |
| Coupling Style | Bayonet |
| Connector Style | Square Flange Receptacle, Smooth Holes, without thread for backfitting |
| Contact Gender | Pin – Male |
| Shell Material | |
| RoHS Compliant | No |
| Contacts Supplied | Yes |
| Insert Keyway | Normal |
| Mating Cycles | 500 |
| Operating Temperature | – 55°C to + 85°C – -67°F to +185°F |
| Qualified | VG 96918 |
| Salt Spray | 48 Hours |
| Termination Method | Crimp |
