801-010-02M6-7SA

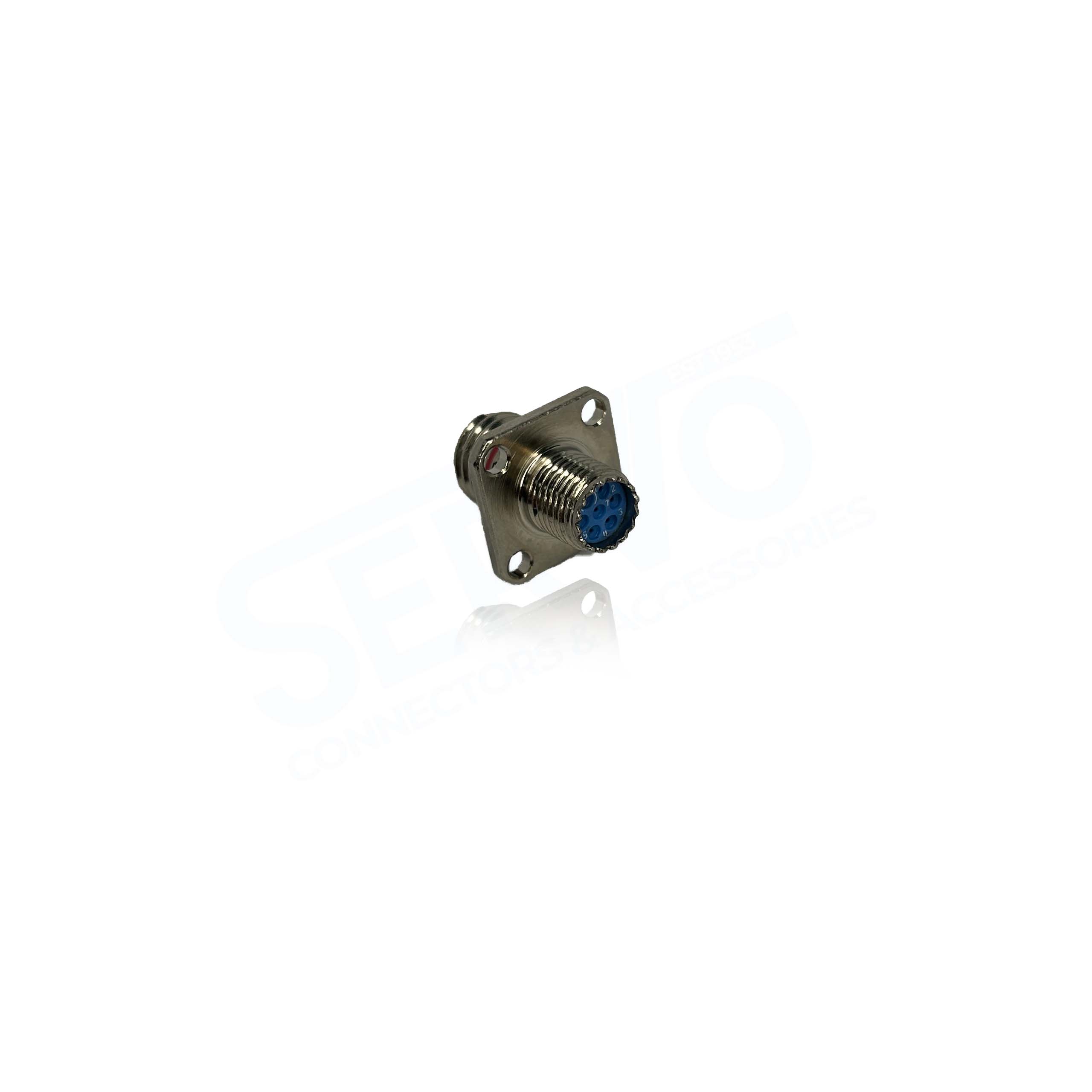

801-010-02M6-7SA, Glenair Mighty Mouse Connector, Receptacle with Accessory Thread, Thru Hole Square Flange Receptacle for Front or Rear Panel Mounting, Aluminum / Electroless Nickel RoHS Compliant Plating, Shell Size 6 with 7#23 Socket, Crimp Contacts, A Orientation.
[table “” not found /]Technical Information
| Manufacturer: | Glenair |
| Shell Style: | Receptacle with Rear Accessory Thread |
| Shell Material: | Aluminium Alloy |
| Shell Plating: | Electroless Nickel |
| Shell Size: | 6 |
| Contact Size: | 7#23 |
| Contact Gender: | Socket |
| Contact Type: | Crimp |
| Insert Arrangement: | 6-7 |
| Series: | 801 Mighty Mouse |
| Keyway Position: | A |
| RoHS: | Compliant |
801-008-16M6-7SA Datasheet
|
Resources
The Glenair 801 Series Mighty Mouse, offers MIL-SPEC performance in a lightweight, ultraminiature connector series. The 801 series is ideal for use within high-density applications, where traditional military circular connectors are too large or heavy. The double-start ACME threads provide full mating in 1½ turns, the plug features an anti-decoupling spring for vibration resistance. The unique integral molding/band platform allows direct shield attachment and cable over-molding. Receptacles are available with printed circuit board contacts, and plugs have anti-decoupling wave springs or specified ratchet mechanisms for added security.
