30-01-C653-1285

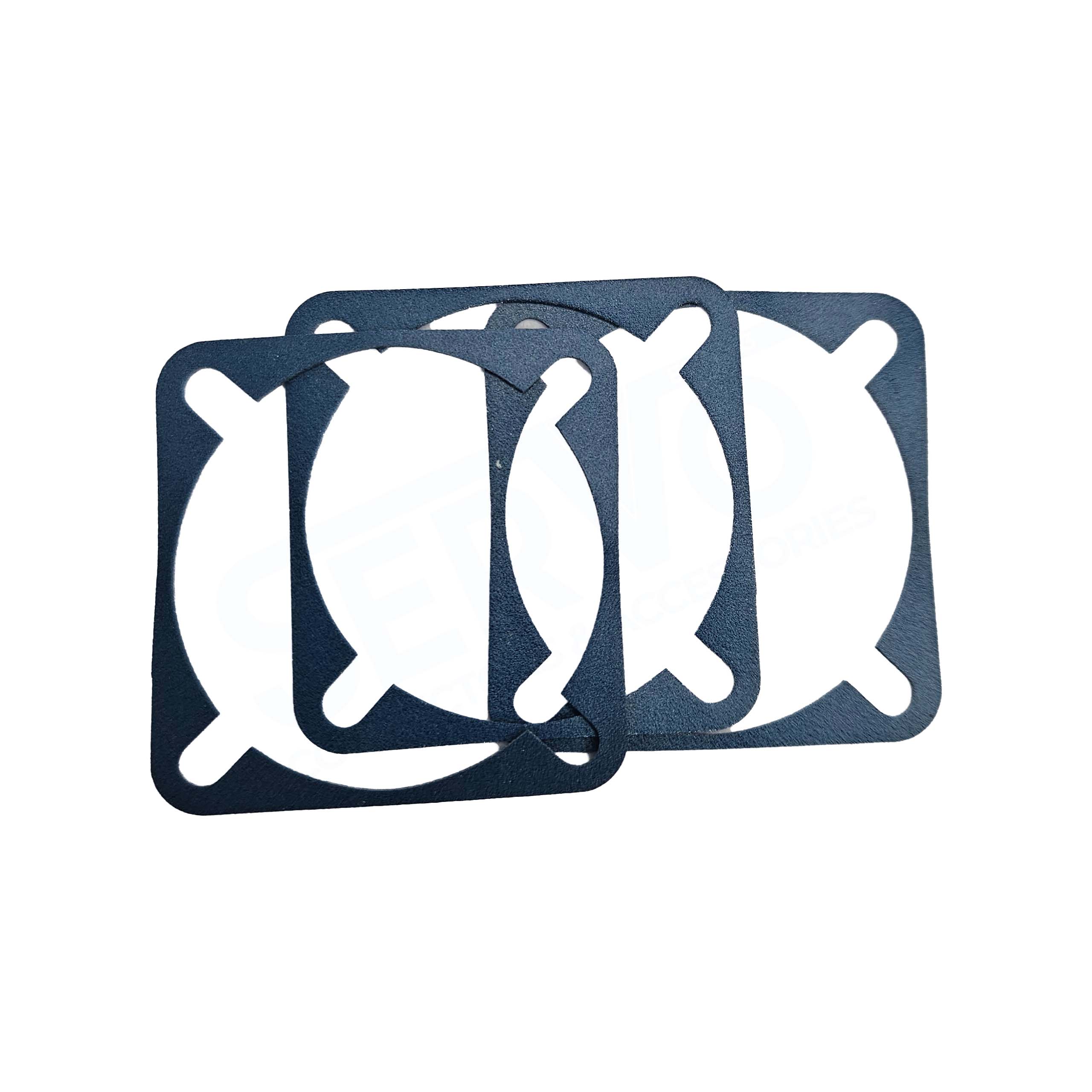

30-01-C653-1285, Mounting Flange EMI Gasket Shell Size 23
| RoHS Compliant: |  |
|---|---|
| Datasheet: |  |
| Additional: |  |
| Manufacturer | |
|---|---|
| Series | MIL-DTL-38999 Series III |
| Qualified | Yes – Commercial Version |
| Shell Size | |
| Dimensions (MM) | A ±0.010 (0.25): 1.375 (34.93), B +0.020 (0.51) –0.000: 1.625 (41.28) , C ±0.015 (0.38): 1.750 (44.45) , D ±0.010 (0.25): 0.172 (4.37), E ±0.010 (0.25): 0.259 (6.58) |
Resources
Datasheet
30-01-C653-1285, CHO-SEAL 1285 conductive silicone elastomer features corrosion resistance in salt spray environments over silver-plated copper-filled silicone, the dominant EMI Gasket material for military and aerospace applications. The CHO-SEAL 1298 elastomer is lighter, with a shield performance within 10dB, recommended for when the system shielding specifications are up to 90 dB at 1 GHz. It is a medium-durometer silicone with excellent low- and high-temperature properties and electrical stability.
