Fujikura D/MS A/B Series: Overview of Shell Styles

ByT.Maggs

Utilising the right connector for your solution is paramount in ensuring the connectivity and longevity of your connector component solution. Fujikura DDK is a leading manufacturer of D/MS A/B series circular connectors, meeting the standards of MIL-DTL-5015.

Fujikura DDK features six different shell types, including three receptacles: Wall Mounting, Box Mounting and Cable with three plugs: Straight, Straight with Split backshell and Right Angle with Split backshell.

Featuring shell sizes from 10SL* to 36 and 73 insert arrangements, the D/MS A/B series is designed to meet the requirements of telecommunications, robotics and instrumentation.

*10SL only available in D/MS3102A and D/MS3106A

CONNECTOR STYLES

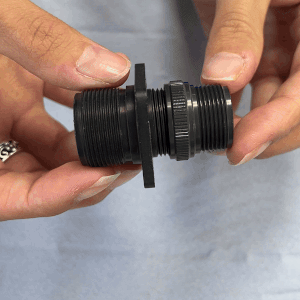

3100A16 Video ezgif.com resize

Wall Mount Receptacle

D/MS3100A, Size 16

Available for sizes:

12S, 14S, 16S, 16, 18, 20, 22, 24, 28, 32, 32A, 36

Orientations Available:

Normal (Blank) W, X, Y, Z

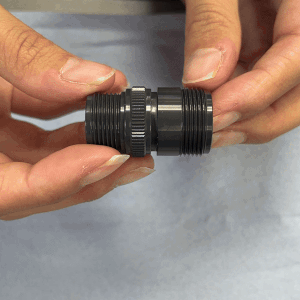

3101A14S 9P ezgif.com resize

Cable Receptacle

D/MS3101A, Size 14S

Available for sizes:

12S, 14S, 16S, 16, 18, 20, 22, 24, 28, 32, 32A, 36

Orientations Available:

Normal (Blank) W, X, Y, Z

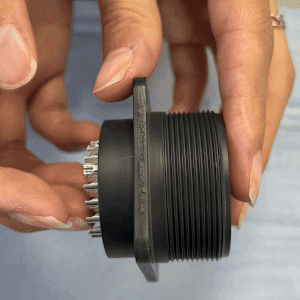

3102A28 15P Video ezgif.com resize

Box Mount Receptacle

D/MS3102A, Size 28

Available for sizes:

10SL, 12S, 14S, 16S, 16, 18, 20, 22, 24, 28, 32, 32A, 36

Orientations Available:

Normal (Blank) W, X, Y, Z

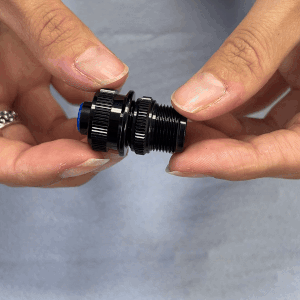

ezgif.com resize

Straight Plug

D/MS3106A, Size 10

Available for sizes:

10SL, 12S, 14S, 16S, 16, 18, 20, 22, 24, 28, 32, 32A, 36

Orientations Available:

Normal (Blank) W, X, Y, Z

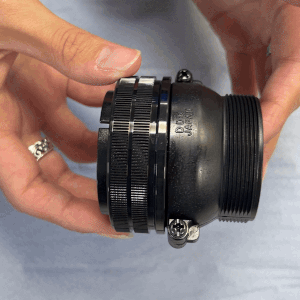

3106B36 5P

Straight Plug (Split Backshell)

D/MS3106B, Size 36

Available for sizes:

12S, 14S, 16S, 16, 18, 20, 22, 24, 28, 32, 32A, 36

Orientations Available:

Normal (Blank) W, X, Y, Z

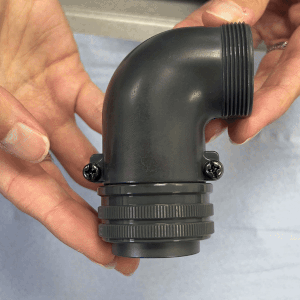

3108B24 2P ezgif.com resize

Right Angle Plug (Split Backshell)

D/MS3108B, Size 24

Available for sizes:

12S, 14S, 16S, 16, 18, 20, 22, 24, 28, 32, 32A, 36

Orientations Available:

Normal (Blank) W, X, Y, Z

COMPLETE YOUR SOLUTION

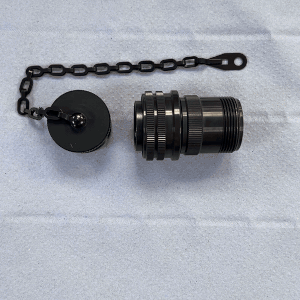

DMS3106A20 18P25042 20DK

Cap and Chain for Plug

D/MS3106A with D/MS25042-_ _DK

D/MS5042-_ _DK is a fastening cap and chain, you fasten the chain hole “D” to the tightening screw of a cable clamp or a split back shell.

Part numbers shown: D/MS3106A20, D/MS25042-20DK

> Available for Sizes: 10SL-36

> Suitable for D/MS3106A, D/MS3106B, D/MS3108B

Part NumberApplicable Shell SizeAB max.⌀ C max.⌀ D±0.25E±13.3
D/MS25042-10DK10SL5/8-24UNEF16.6617.454.0170.8
D/MS25042-12DK12S3/4-20UNEF21.4420.624.0170.8
D/MS25042-14DK14S7/8-20UNEF21.4423.804.0170.8
D/MS25042-16DK16S, 161-20UNEF21.4426.974.0170.8
D/MS25042-18DK181 1/8-18UNEF21.4430.154.0170.8
D/MS25042-20DK201 1/4-18UNEF21.4433.324.8170.8
D/MS25042-22DK221 3/8-18UNEF21.4436.504.8170.8
D/MS25042-24DK241 1/2-18UNEF21.4439.674.8170.8
D/MS25042-28DK281 3/4-18UNS21.4446.024.8170.8
D/MS25042-32DK322-18UNS21.4452.375.6170.8
D/MS25042-36DK362 1/4-16UN21.4458.725.6170.8
DMS3106A20 18P 3057 12AK ezgif.com resize

Cable Clamp

D/MS3106A with D/MS3057-_ _AK

Cable clamps (D/MS3057-_ _A) are an accessory which can be used with a backshell to fasten a cable, they are fixed to the centre of a cable clamp.

Parts Numbers Shown: D/MS3106A, D/MS3057-12AK

> Available for Sizes 10SL-36

Part NumberShell SizeA±0.7B±0.8C±0.4DEG±0.7V
D/MS3057-4AK10SL, 12S20.620.69.07.95.622.25/8-24UNEF
D/MS3057-6AK14S22.224.69.011.27.927.03/4-20UNEF
D/MS3057-8AK16S, 1623.827.89.014.311.129.47/8-20UNEF
D/MS3057-10AK1823.830.19.015.914.331.71-20UNEF
D/MS3057-12AK20, 2223.835.09.019.015.937.31 3/16-18UNEF
D/MS3057-16AK24, 2826.242.19.023.819.142.91 7/16-18UNEF
D/MS3057-20AK3227.851.611.031.723.851.61 3/4-18UNS
D/MS3057-24AK3629.456.410.534.931.858.02-18UNS
DMS3106A20 18P 3057 12AK 25042 20DK ezgif.com resize

Cap and Chain with Cable Clamp

D/MS3106A with D/MS3057-_ _AK and D/MS25042-_ _DK

Part Numbers Shown: D/MS3106A, D/MS3057-12AK, D/MS25042-20DK

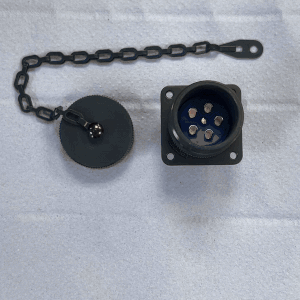

DMS3100A20 17P DMS25043 20DK ezgif.com resize

Cap and Chain for Receptacle

D/MS3100A with D/MS25043-_ _DK

D/MS25043-_ _DK is a fastening cap and chain, the chain hole “D” is fastened to the mounting screw of a receptacle.

Part Numbers Shown: D/MS3100A, D/MS25043-20DK

> Available for Sizes: 12S-36

> Suitable for D/MS3100A, D/MS3101A, D/MS3102A

Part NumberApplicable Shell SizeAB max.⌀ C max.⌀ D±0.25E±13.3
D/MS25043-10DK10SL5/8-24UNEF11.9120.703.6170.8
D/MS25043-12DK12S3/4-20UNEF11.91205.403.6170.8
D/MS25043-14DK14S7/8-20UNEF11.9128.583.6170.8
D/MS25043-16DK16S, 161-20UNEF11.9130.183.6170.8
D/MS25043-18DK181 1/8-18UNEF11.9134.133.6170.8
D/MS25043-20DK201 1/4-18UNEF11.9137.313.6170.8
D/MS25043-22DK221 3/8-18UNEF11.9140.493.6170.8
D/MS25043-24DK241 1/2-18UNEF11.9143.664.4170.8
D/MS25043-28DK281 3/4-18UNS13.4950.014.4170.8
D/MS25043-32DK322-18UNS13.4956.364.8170.8
D/MS25043-36DK362 1/4-16UN13.4962.714.8170.8

Learn More

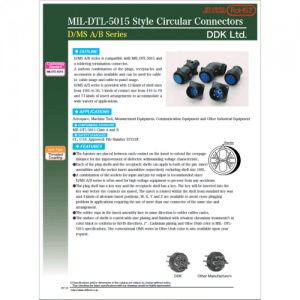

DMS Datasheet

Download D/MS A/B Series Datasheet
